• RHP SL1-1/4A Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Flat Back Insert
1 1

SKU: SL1.1/4A-RHP

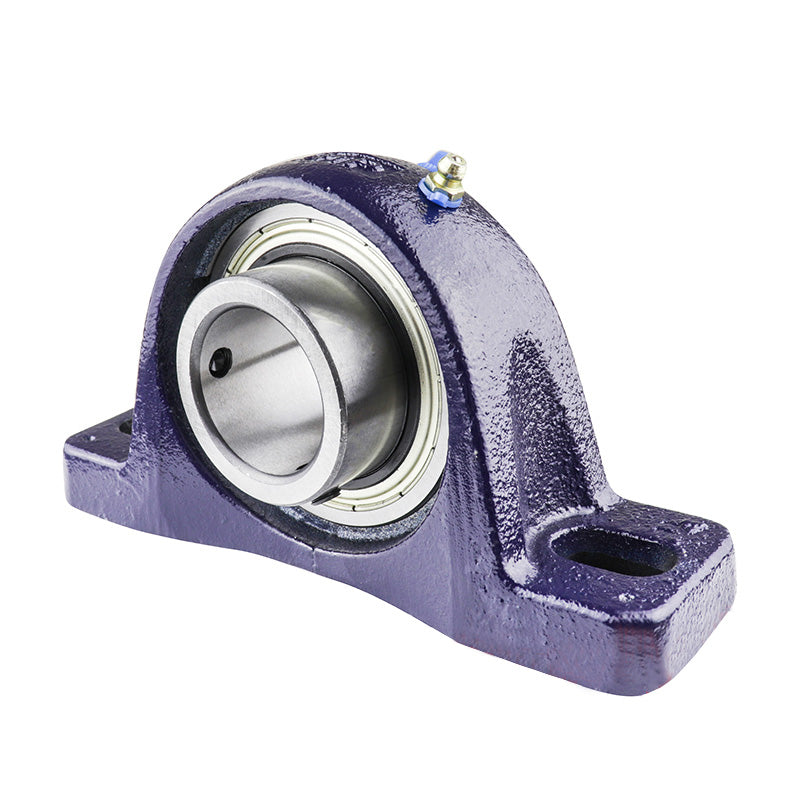

RHP SL1-1/4A Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Flat Back Insert

RHP SL1-1/4A Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Flat Back Insert
$68.04 ex VAT
$68.04 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.57
20+ $43.01
30+ $42.50
40+ $41.99
50+ $41.48
75+ $40.96
100+ $38.40
200+ $37.89
250+ $37.38
500+ $36.87
1000+ $35.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SL
Bolt Hole Centres:
4.783-5.374 inch
Technical
Bore 1-1/4 inch
L 6.535 inch
H 1.812 inch
H1 0.63 inch
H2 3.602 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B1 1.374 inch
s1 0.376 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Insert <a href="advanced_search_result.php?keywords=1235-1-1/4G+insonly">1235-1-1/4G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
