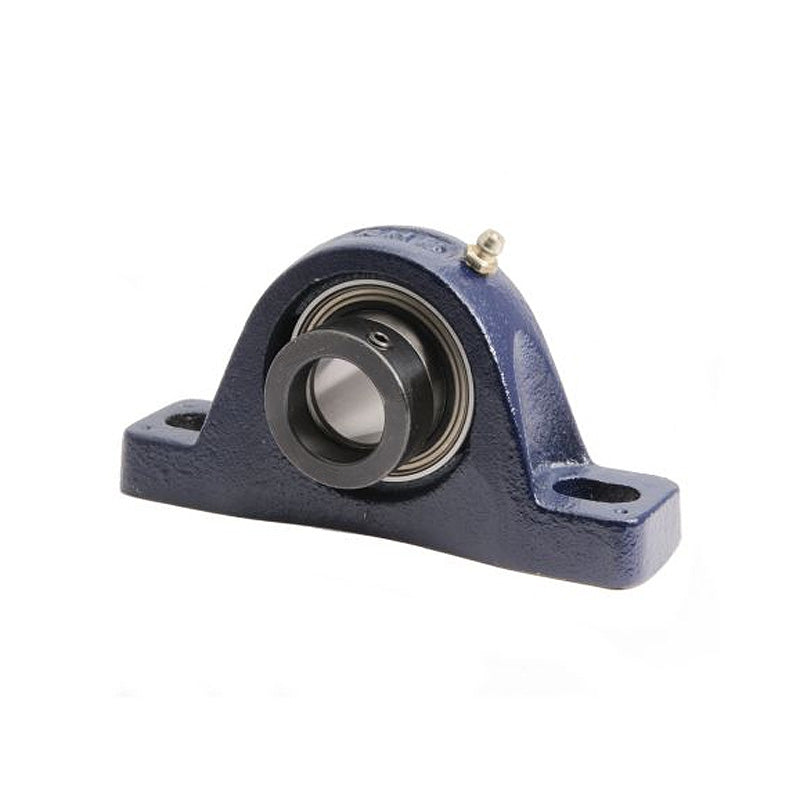

• RHP SL1-1/4EC Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentic Collar Flat Back Insert
1 1

SKU: SL1.1/4EC-RHP

RHP SL1-1/4EC Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentic Collar Flat Back Insert

RHP SL1-1/4EC Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Eccentic Collar Flat Back Insert
$77.77 ex VAT
$77.77 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.09
20+ $49.17
30+ $48.58
40+ $48.00
50+ $47.41
75+ $46.82
100+ $43.90
200+ $43.31
250+ $42.73
500+ $42.14
1000+ $40.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SL
Bolt Hole Centres:
4.783-5.374 inch
Technical
Bore 1-1/4 inch
L 6.535 inch
H 1.812 inch
H1 0.63 inch
H2 3.602 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Insert <a href="advanced_search_result.php?keywords=1235-1-1/4ECG+insonly">1235-1-1/4ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
