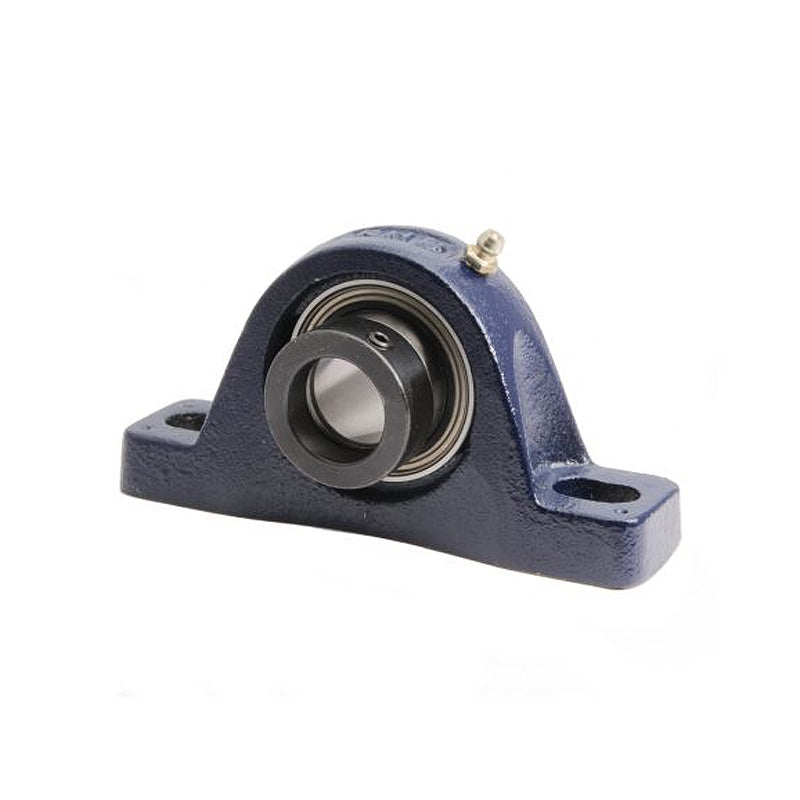

• RHP SL1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert
1 1

SKU: SL1.15/16DEC-RHP

RHP SL1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert

RHP SL1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert
$135.05 ex VAT
$135.05 ex VAT
Sale Sold out

In stock

Price Break
10+ $90.46
20+ $85.37
30+ $84.36
40+ $83.34
50+ $82.33
75+ $81.31
100+ $76.23
200+ $75.21
250+ $74.19
500+ $73.18
1000+ $71.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
SL
Bolt Hole Centres:
5.945-6.969 inch
Technical
Bore 1-15/16 inch
L 8.425 inch
H 2.187 inch
H1 0.76 inch
H2 4.488 inch
J max 6.969 inch
J min 5.945 inch
G 0.5 inch
A 2.165 inch
A1 1.417 inch
B3 2.469 inch
s2 0.97 inch
d2 2.75 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16DECG+insonly">1050-1-15/16DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
