SKU: SL1.7/16DEC-RHP

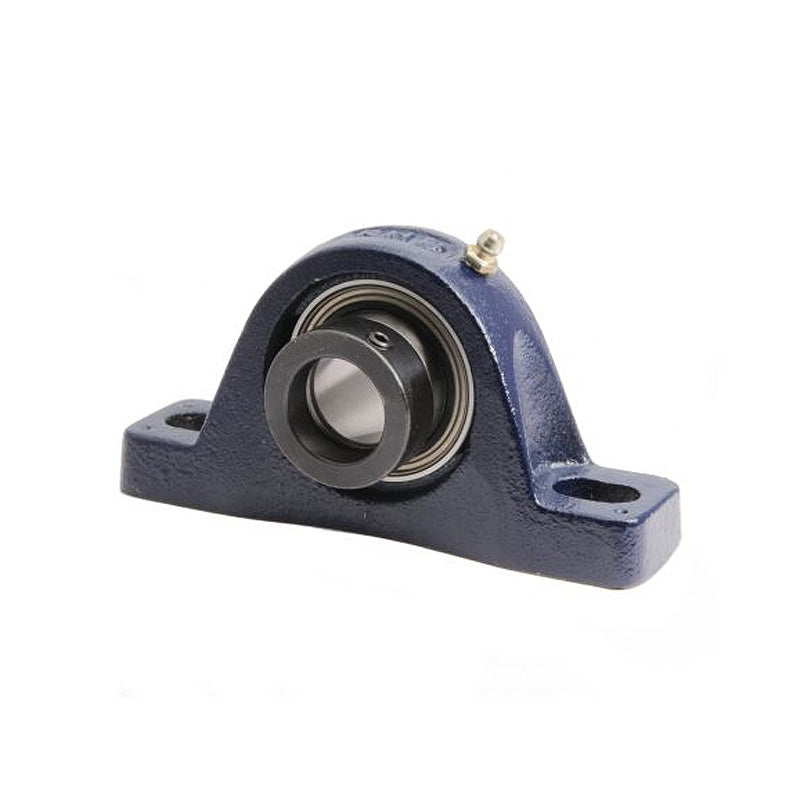

RHP SL1-7/16DEC Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Eccentric Collar Full Width Insert
RHP SL1-7/16DEC Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Eccentric Collar Full Width Insert
Regular price
$88.16
ex VAT
Regular price
Sale price
$88.16
ex VAT
In stock
Price Break
10+
$59.05
20+
$55.74
30+
$55.07
40+
$54.41
50+
$53.75
75+
$53.08
100+
$49.76
200+
$49.10
250+
$48.44
500+
$47.77
1000+
$46.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 4.783-5.374 inch
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 6.535 inch |
| H | 1.812 inch |
| H1 | 0.63 inch |
| H2 | 3.602 inch |
| J max | 5.374 inch |
| J min | 4.783 inch |
| G | 0.5 inch |
| A | 1.752 inch |
| A1 | 1.201 inch |
| B3 | 2.015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-7/16DECG+insonly">1035-1-7/16DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
