SKU: SL101_IMP_NAK

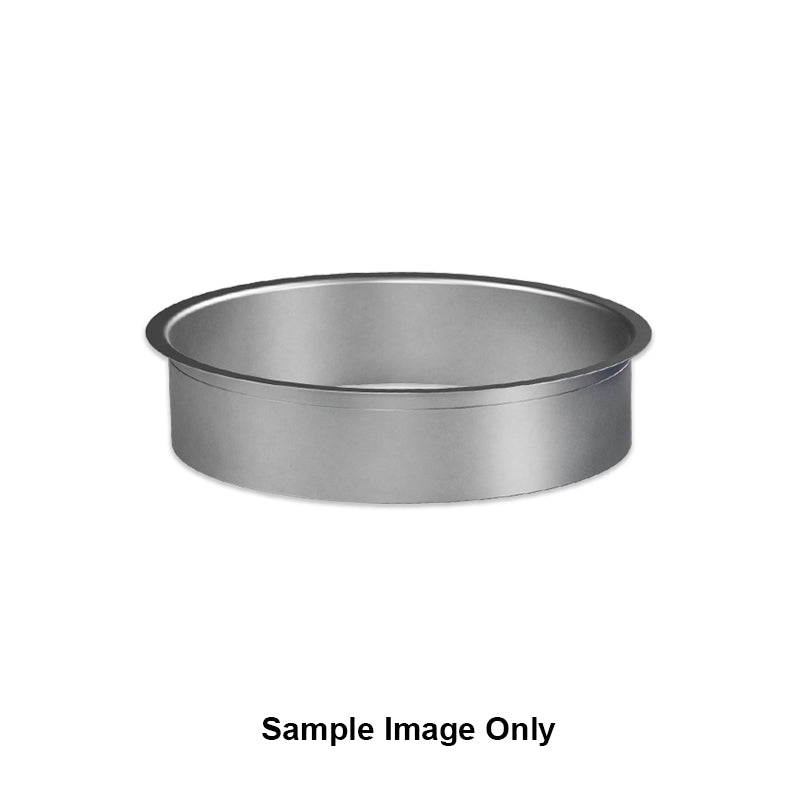

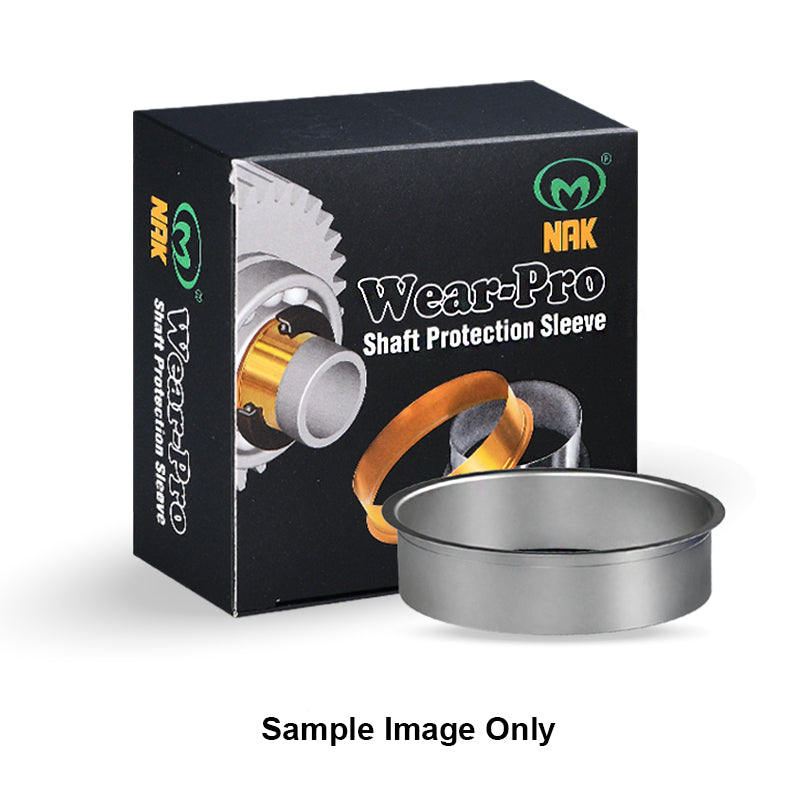

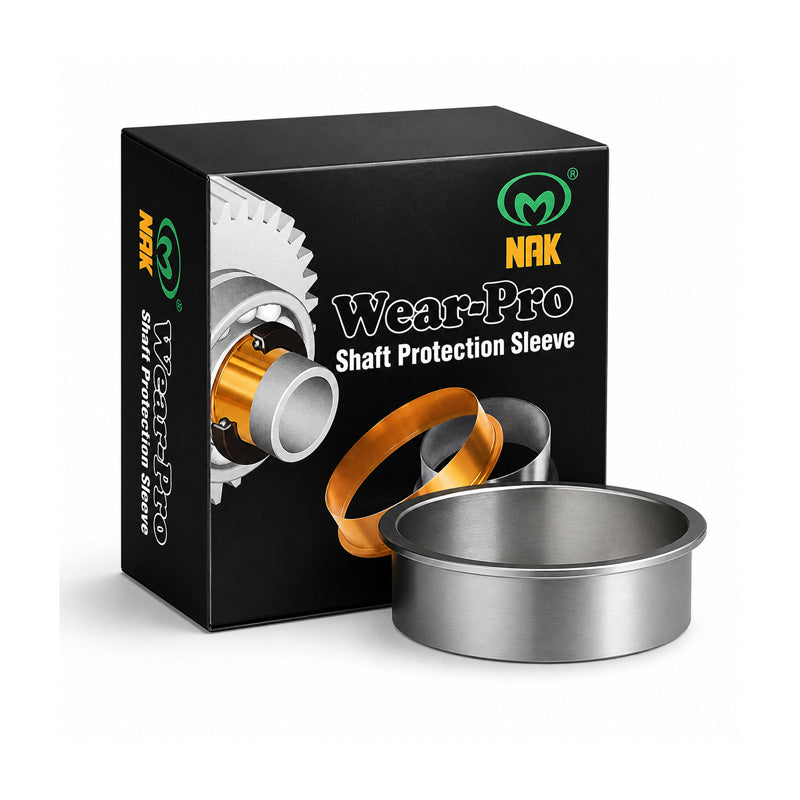

NAK SL101 Hardened Stainless Sleeve for Shafts 2.237-2.243 inch - Allow 7-10 Days
- Regular price
- $32.62 ex VAT
- Sale price
- $32.62
- Regular price
-
Not in stock
Quantity Price Breaks
10
$29.03
19
$27.40
29
$27.07
39
$26.75
49
$26.42
74
$26.10
99
$24.47
199
$24.14
249
$23.81
499
$23.49
999
$22.83
SKU:
SL101_IMP_NAK
NAK SL101 Hardened Stainless Sleeve for Shafts 2.237-2.243 inch - Allow 7-10 Days
- Regular price
- $32.62 ex VAT
- Sale price
- $32.62
- Regular price
-
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical
| Shaft Diameter Range (A) | = | 2.237-2.243 inch |
| Nominal Shaft Diameter (A) | = | 2.24 inch |
| Flange Diameter (D) | = | 2.563 inch |
| Width on Shaft (X) | = | 0.764 inch |
| Overall Width (Y) | = | 0.902 inch |
| Installation Depth (Z) | = | 1.252 inch |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
