SKU: SL1DEC-RHP

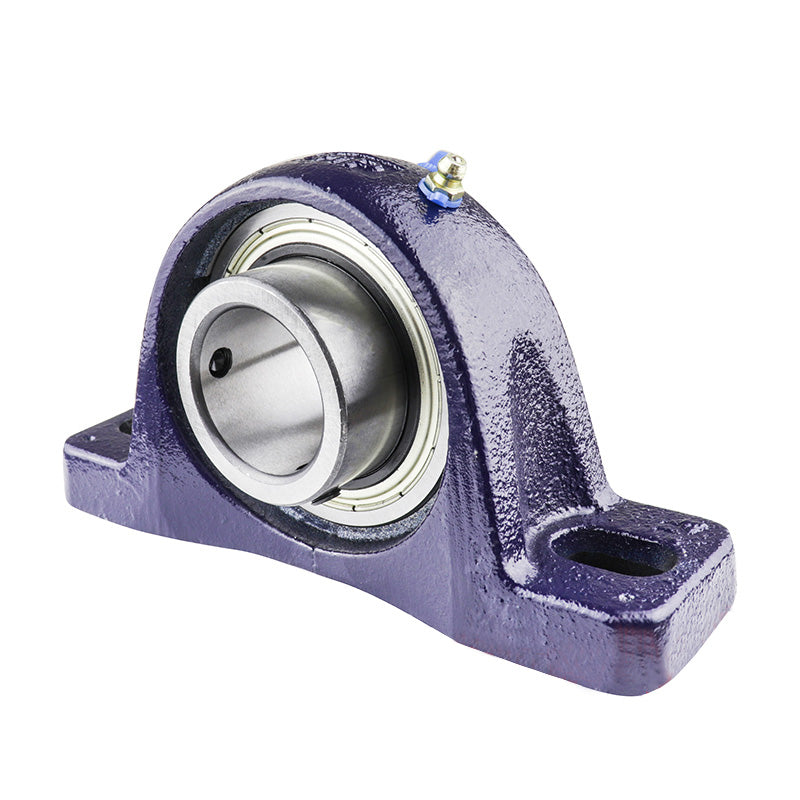

RHP SL1DEC Two Bolt Cast Iron Pillow Block and 1 Bore Eccentric Collar Full Width Insert

RHP SL1DEC Two Bolt Cast Iron Pillow Block and 1 Bore Eccentric Collar Full Width Insert
$60.08 ex VAT
$60.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.24
20+ $37.98
30+ $37.53
40+ $37.08
50+ $36.62
75+ $36.17
100+ $33.91
200+ $33.46
250+ $33.01
500+ $32.56
1000+ $31.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
SL
Bolt Hole Centres:
3.866-4.339 inch
Technical
Bore 1 inch
L 5.472 inch
H 1.312 inch
H1 0.504 inch
H2 2.669 inch
J max 4.339 inch
J min 3.866 inch
G 0.375 inch
A 1.417 inch
A1 0.965 inch
B3 1.748 inch
s2 0.689 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Insert <a href="advanced_search_result.php?keywords=1025-1DECG+insonly">1025-1DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
