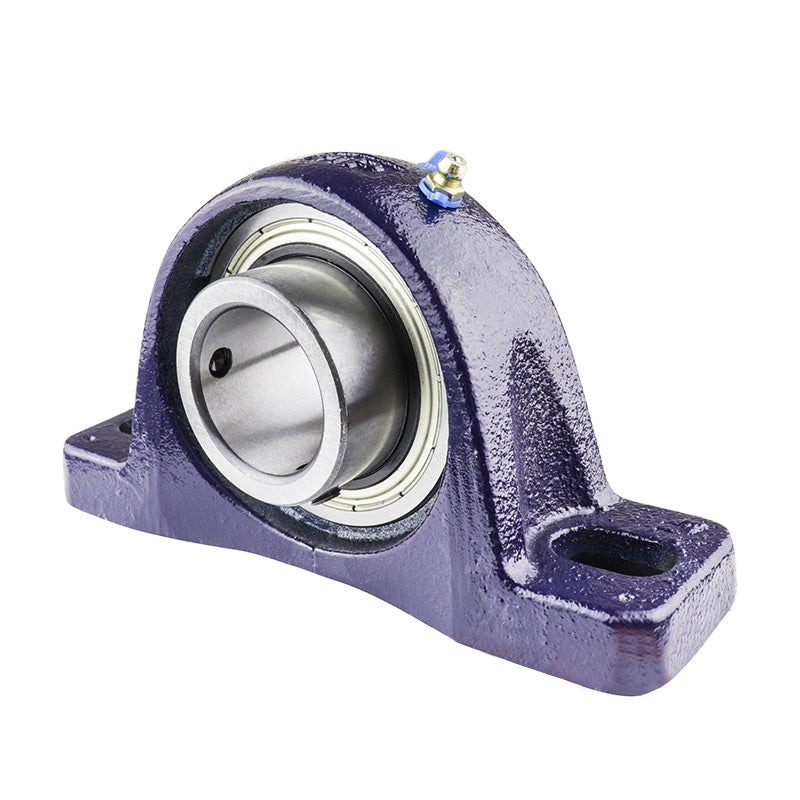

• RHP SL2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Full Width Insert
1 1

SKU: SL2.3/4-RHP

RHP SL2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Full Width Insert

RHP SL2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Full Width Insert
$339.80 ex VAT
$339.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $227.61
20+ $214.82
30+ $212.27
40+ $209.71
50+ $207.15
75+ $204.59
100+ $191.81
200+ $189.25
250+ $186.69
500+ $184.13
1000+ $179.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Style:
SL
Bolt Hole Centres:
8.689-9.563 inch
Technical
Bore 2-3/4 inch
L 11.748 inch
H 3.25 inch
H1 1.374 inch
H2 6.563 inch
J max 9.563 inch
J min 8.689 inch
G 0.75 inch
A 3.252 inch
A1 2.189 inch
B 3.062 inch
s 1.314 inch
s1 - inch
d1 3.622 inch
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Insert <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
