SKU: SL2.7/16-RHP

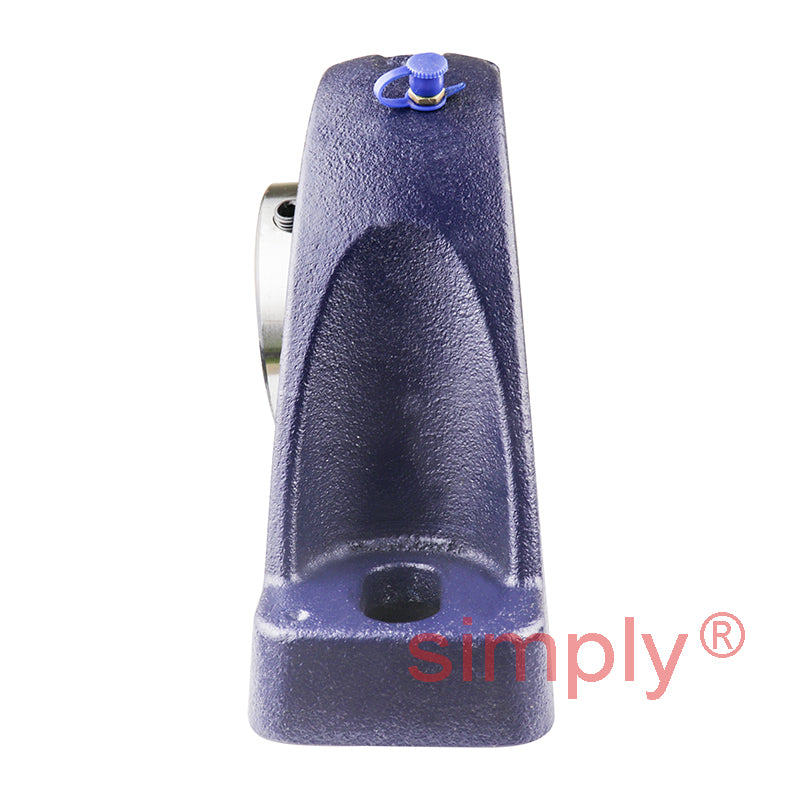

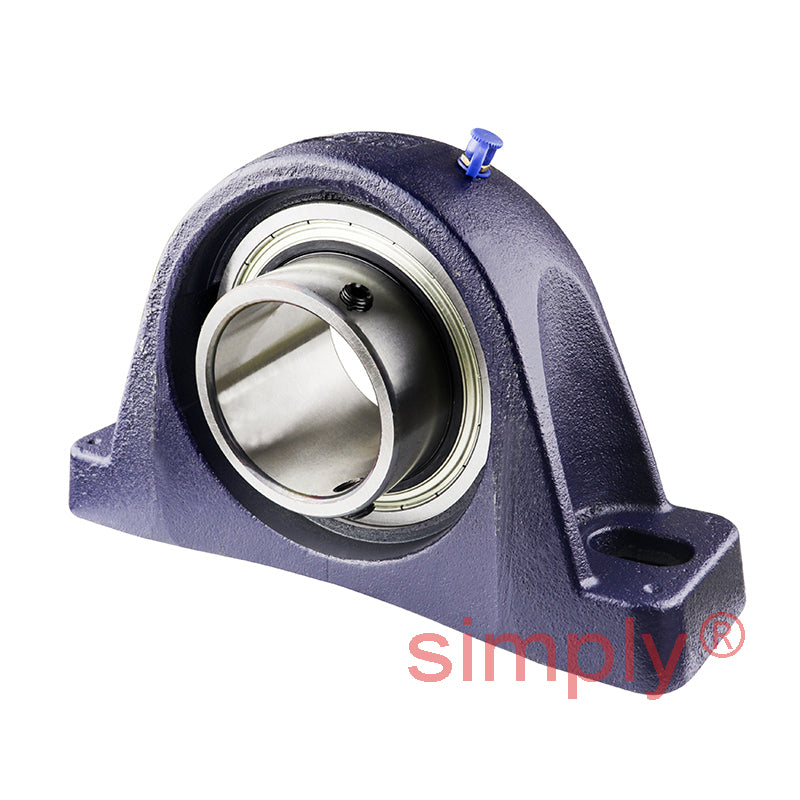

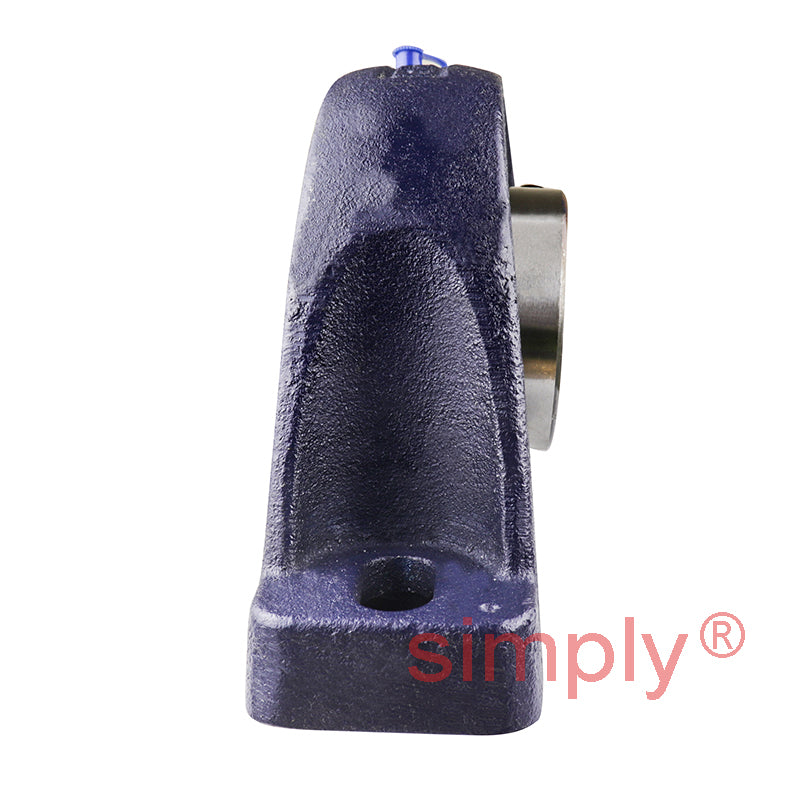

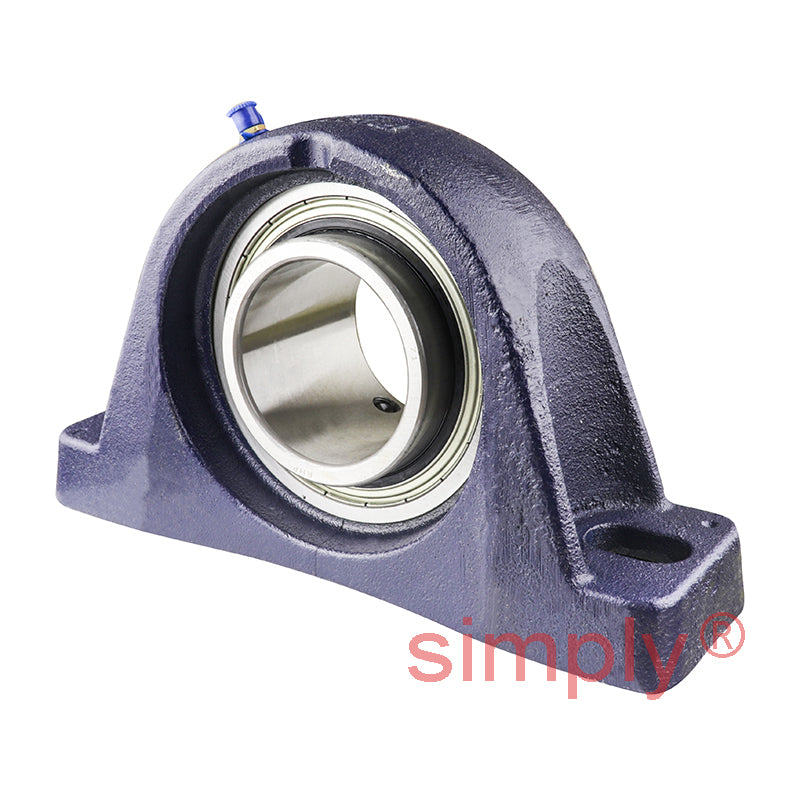

RHP SL2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Full Width Insert

RHP SL2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Full Width Insert
$177.39 ex VAT
$177.39 ex VAT
Sale Sold out

In stock

Price Break
10+ $118.82
20+ $112.15
30+ $110.81
40+ $109.48
50+ $108.14
75+ $106.81
100+ $100.13
200+ $98.79
250+ $97.46
500+ $96.12
1000+ $93.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Style:
SL
Bolt Hole Centres:
7.189-8.063 inch
Technical
Bore 2-7/16 inch
L 9.803 inch
H 2.687 inch
H1 1.126 inch
H2 5.437 inch
J max 8.063 inch
J min 7.189 inch
G 0.625 inch
A 2.748 inch
A1 1.811 inch
B 2.562 inch
s 1.002 inch
s1 - inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Insert <a href="advanced_search_result.php?keywords=1060-2-7/16G+insonly">1060-2-7/16G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
