SKU: SL2.7/8-RHP
RHP SL2-7/8 Two Bolt Cast Iron Pillow Block and 2-7/8 Bore Grub Screw Full Width Insert - Allow 2-3 Days
RHP SL2-7/8 Two Bolt Cast Iron Pillow Block and 2-7/8 Bore Grub Screw Full Width Insert - Allow 2-3 Days
Regular price
$441.86
ex VAT
Regular price
Sale price
$441.86
ex VAT
In stock
Price Break
10+
$329.18
20+
$315.88
30+
$309.23
40+
$299.25
50+
$292.60
75+
$275.98
100+
$232.75
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 8.689-9.563 inch

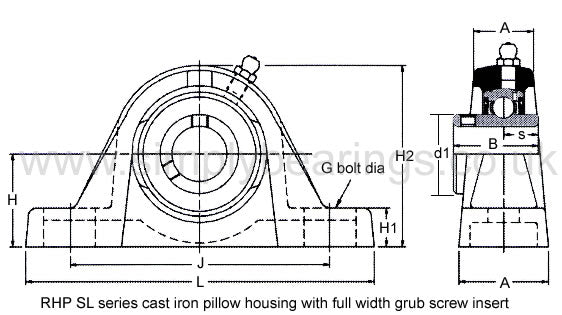

Technical
Technical
| Bore | 2-7/8 inch |
|---|---|
| L | 11.748 inch |
| H | 3.25 inch |
| H1 | 1.374 inch |
| H2 | 6.563 inch |
| J max | 9.563 inch |
| J min | 8.689 inch |
| G | 0.75 inch |
| A | 3.252 inch |
| A1 | 2.189 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| s1 | - inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
