SKU: SL2-RHP

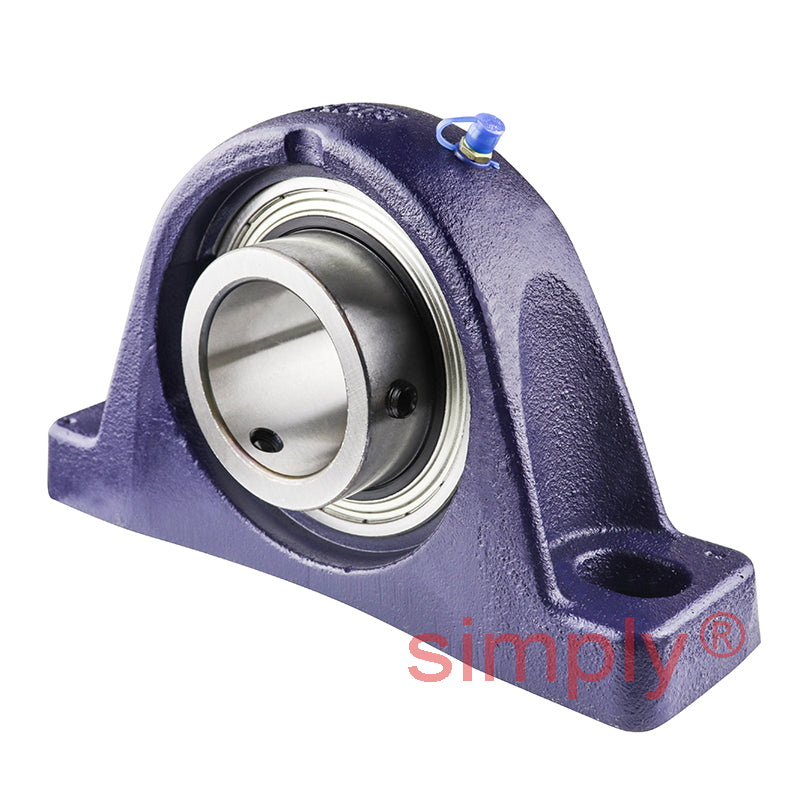

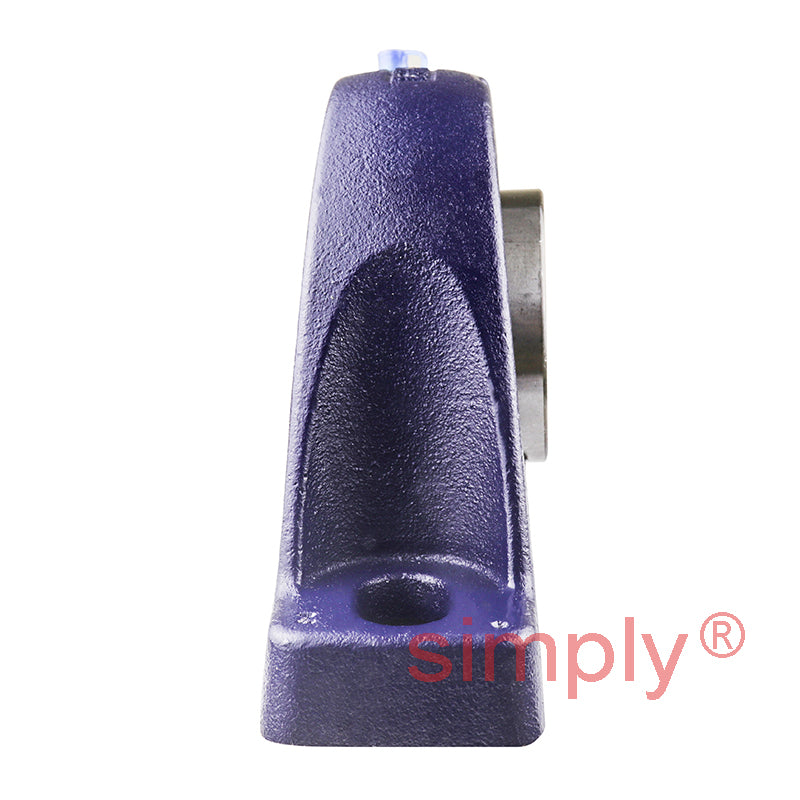

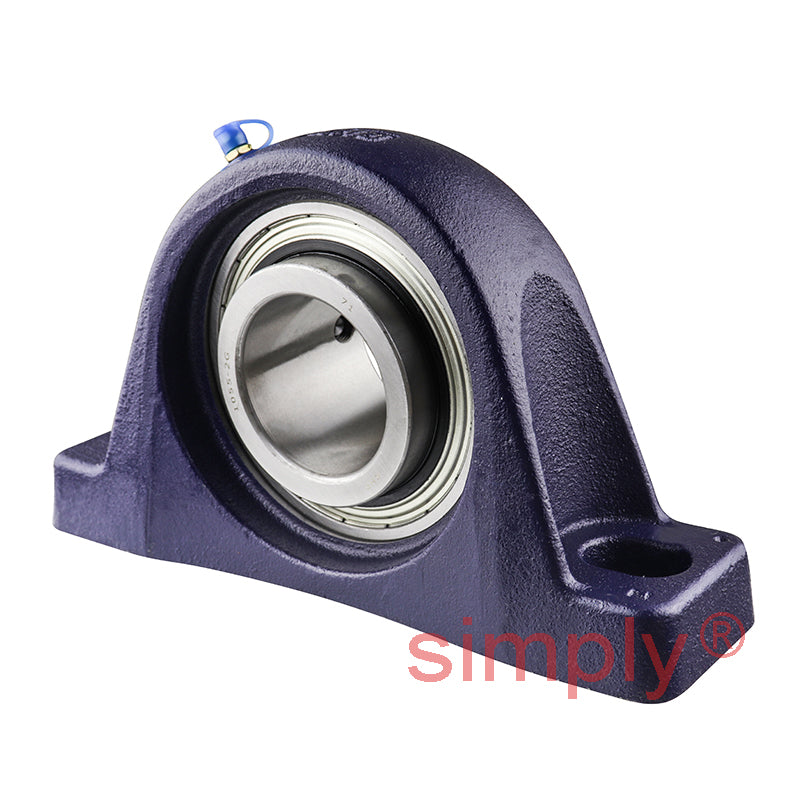

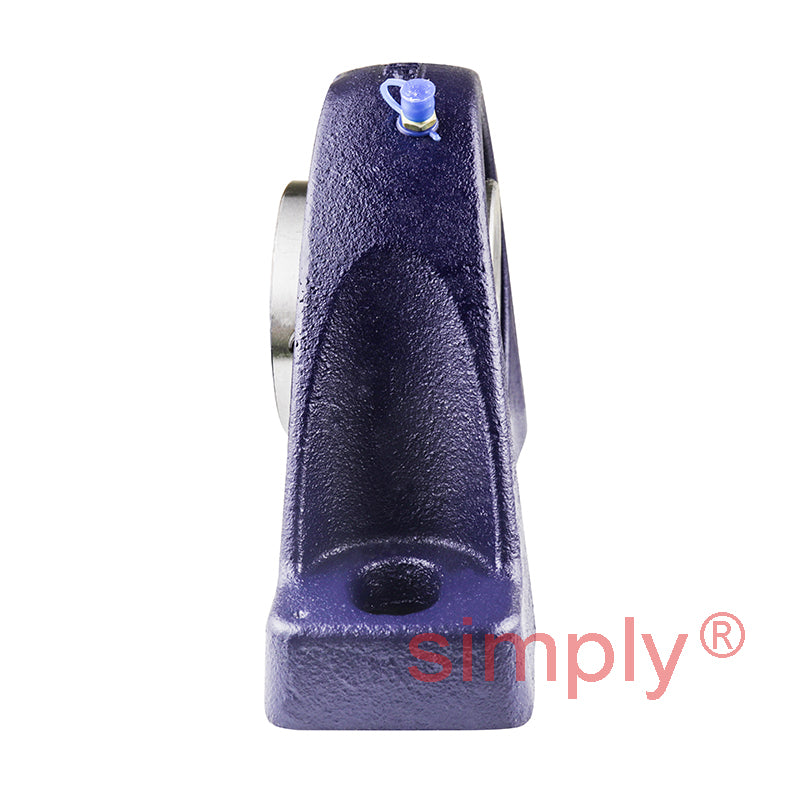

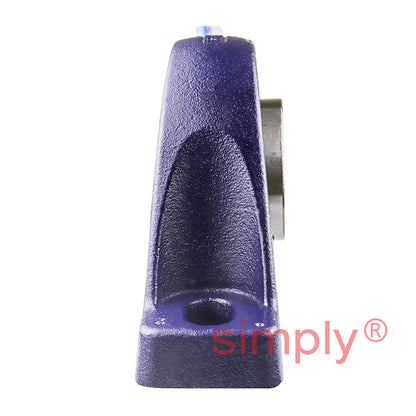

RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert

RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
$144.38 ex VAT
$144.38 ex VAT
Sale Sold out

In stock

Price Break
10+ $96.70
20+ $91.27
30+ $90.18
40+ $89.10
50+ $88.01
75+ $86.92
100+ $81.49
200+ $80.41
250+ $79.32
500+ $78.23
1000+ $76.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SL
Bolt Hole Centres:
6.398-7.028 inch
Technical
Bore 2 inch
L 8.641 inch
H 2.437 inch
H1 0.913 inch
H2 5.039 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 2.187 inch
s 0.877 inch
s1 - inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
