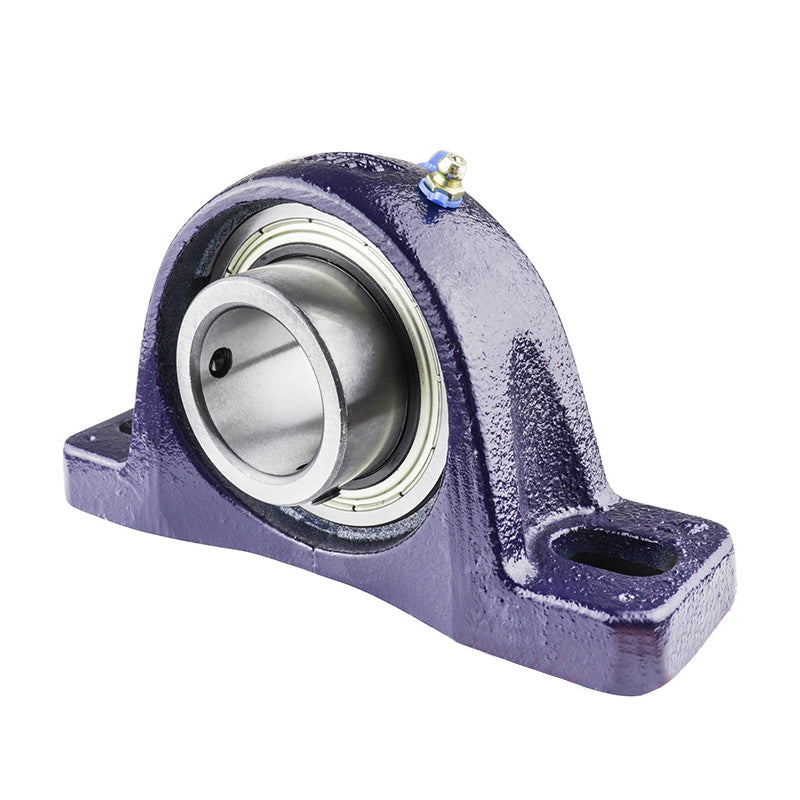

• RHP SL25DEC Two Bolt Cast Iron Pillow Block and 25mm Bore Eccentric Collar Full Width Insert
1 1

SKU: SL25DEC-RHP

RHP SL25DEC Two Bolt Cast Iron Pillow Block and 25mm Bore Eccentric Collar Full Width Insert

RHP SL25DEC Two Bolt Cast Iron Pillow Block and 25mm Bore Eccentric Collar Full Width Insert
$59.19 ex VAT
$59.19 ex VAT
Sale Sold out

In stock

Price Break
10+ $39.65
20+ $37.42
30+ $36.97
40+ $36.53
50+ $36.08
75+ $35.64
100+ $33.41
200+ $32.97
250+ $32.52
500+ $32.07
1000+ $31.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
SL
Bolt Hole Centres:
98.2-110.2mm
Technical
Bore 25mm
L 139mm
H 33.32mm
H1 12.8mm
H2 67.8mm
J max 110.2mm
J min 98.2mm
G 10mm
A 36mm
A1 24.5mm
B3 44.4mm
s2 17.49mm
d2 38.1mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Insert <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
