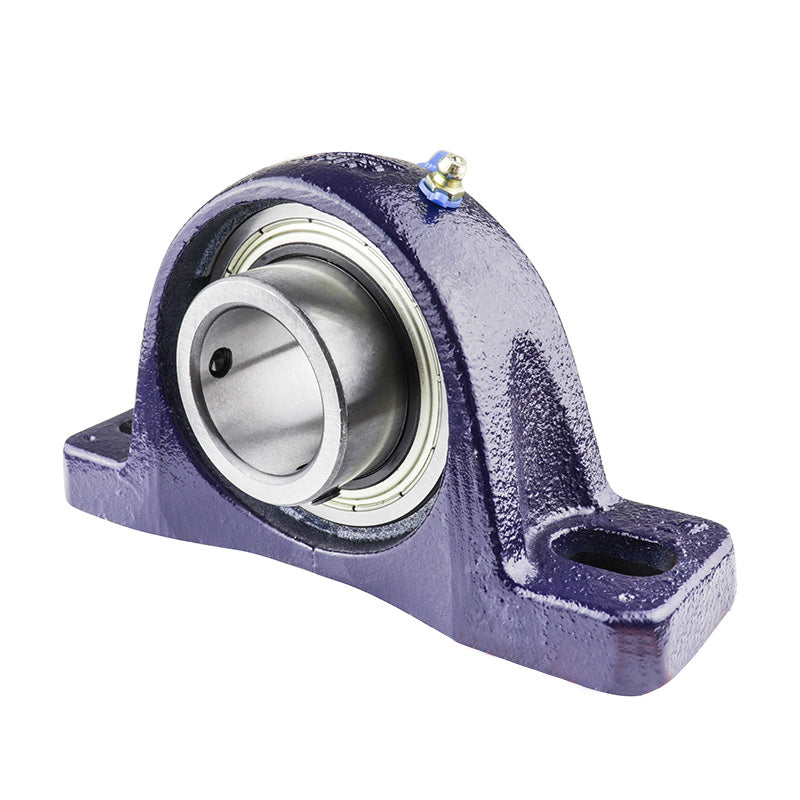

• RHP SL30DEC Two Bolt Cast Iron Pillow Block and 30mm Bore Eccentric Collar Full Width Insert
1 1

SKU: SL30DEC-RHP

RHP SL30DEC Two Bolt Cast Iron Pillow Block and 30mm Bore Eccentric Collar Full Width Insert

RHP SL30DEC Two Bolt Cast Iron Pillow Block and 30mm Bore Eccentric Collar Full Width Insert
$71.76 ex VAT
$71.76 ex VAT
Sale Sold out

In stock

Price Break
10+ $48.07
20+ $45.37
30+ $44.83
40+ $44.29
50+ $43.75
75+ $43.21
100+ $40.51
200+ $39.96
250+ $39.42
500+ $38.88
1000+ $37.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SL
Bolt Hole Centres:
109-130mm
Technical
Bore 30mm
L 161.5mm
H 39.67mm
H1 14.5mm
H2 79.5mm
J max 130mm
J min 109mm
G 12mm
A 41mm
A1 27.5mm
B3 48.42mm
s2 18.32mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Insert <a href="advanced_search_result.php?keywords=1030-30DECG+insonly">1030-30DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
