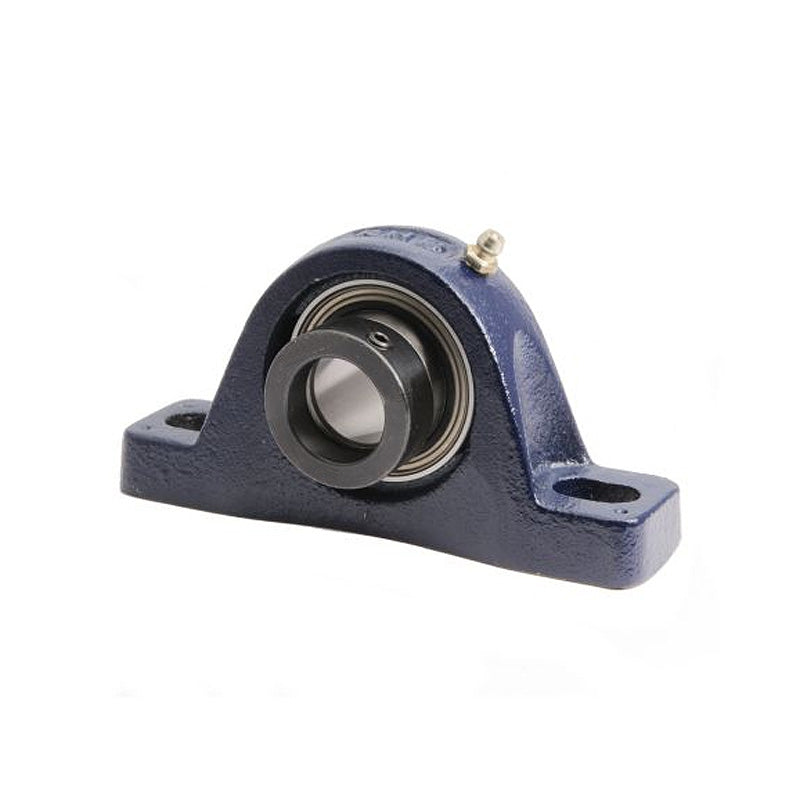

• RHP SL30EC Two Bolt Cast Iron Pillow Block and 30mm Bore Eccentic Collar Flat Back Insert
1 1

SKU: SL30EC-RHP

RHP SL30EC Two Bolt Cast Iron Pillow Block and 30mm Bore Eccentic Collar Flat Back Insert

RHP SL30EC Two Bolt Cast Iron Pillow Block and 30mm Bore Eccentic Collar Flat Back Insert
$61.29 ex VAT
$61.29 ex VAT
Sale Sold out

In stock

Price Break
10+ $41.06
20+ $38.75
30+ $38.29
40+ $37.83
50+ $37.37
75+ $36.90
100+ $34.60
200+ $34.14
250+ $33.68
500+ $33.21
1000+ $32.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SL
Bolt Hole Centres:
109-130mm
Technical
Bore 30mm
L 161.5mm
H 39.67mm
H1 14.5mm
H2 79.5mm
J max 130mm
J min 109mm
G 12mm
A 41mm
A1 27.5mm
B2 35.68mm
s1 9.04mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Insert <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
