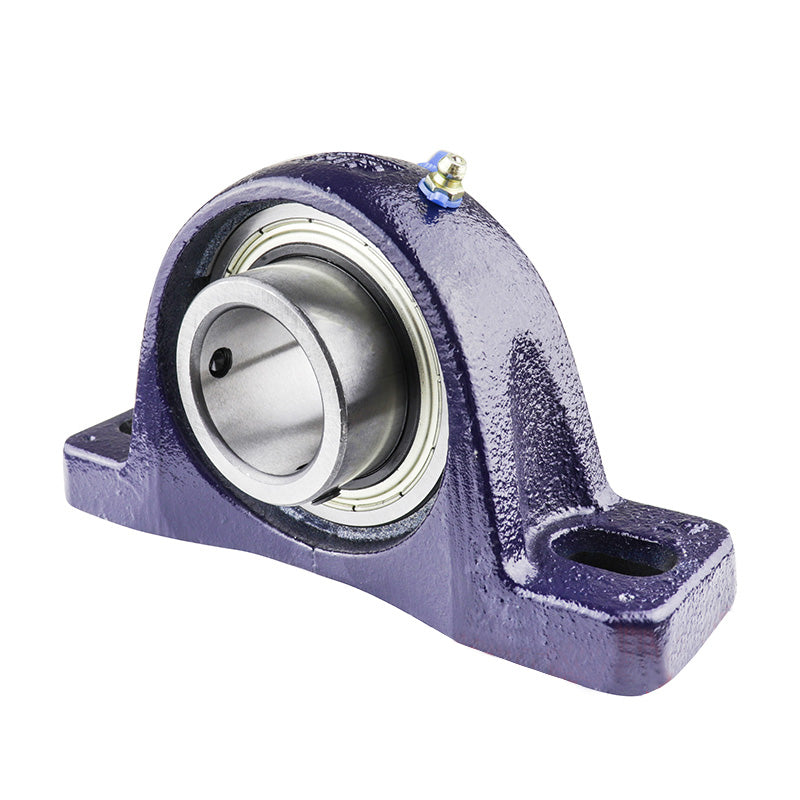

• RHP SL35DEC Two Bolt Cast Iron Pillow Block and 35mm Bore Eccentric Collar Full Width Insert
1 1

SKU: SL35DEC-RHP

RHP SL35DEC Two Bolt Cast Iron Pillow Block and 35mm Bore Eccentric Collar Full Width Insert

RHP SL35DEC Two Bolt Cast Iron Pillow Block and 35mm Bore Eccentric Collar Full Width Insert
$83.11 ex VAT
$83.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $55.67
20+ $52.54
30+ $51.92
40+ $51.29
50+ $50.67
75+ $50.04
100+ $46.91
200+ $46.29
250+ $45.66
500+ $45.04
1000+ $43.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SL
Bolt Hole Centres:
121.5-136.5mm
Technical
Bore 35mm
L 166mm
H 46.02mm
H1 16mm
H2 91.5mm
J max 136.5mm
J min 121.5mm
G 12mm
A 44.5mm
A1 30.5mm
B3 51.18mm
s2 18.89mm
d2 55.58mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Insert <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
