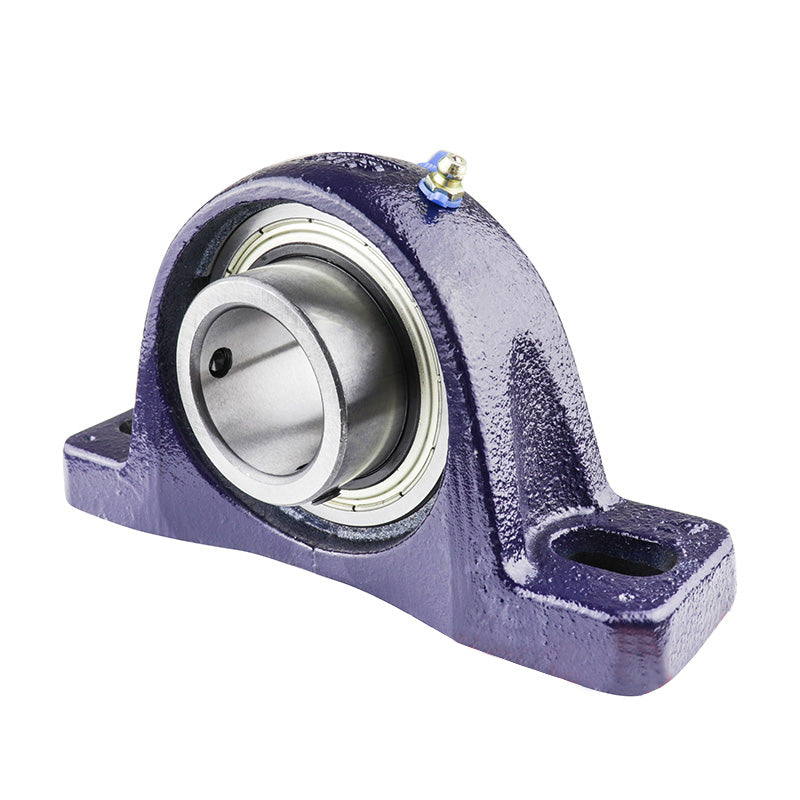

• RHP SL40 Two Bolt Cast Iron Pillow Block and 40mm Bore Grub Screw Full Width Insert
1 1

SKU: SL40-RHP

RHP SL40 Two Bolt Cast Iron Pillow Block and 40mm Bore Grub Screw Full Width Insert

RHP SL40 Two Bolt Cast Iron Pillow Block and 40mm Bore Grub Screw Full Width Insert
$77.64 ex VAT
$77.64 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.00
20+ $49.08
30+ $48.50
40+ $47.91
50+ $47.33
75+ $46.74
100+ $43.82
200+ $43.24
250+ $42.65
500+ $42.07
1000+ $40.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
SL
Bolt Hole Centres:
127-148mm
Technical
Bore 40mm
L 180.5mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J max 148mm
J min 127mm
G 12mm
A 51mm
A1 34.5mm
B 49.23mm
s 19.1mm
s1 11.05mm
d1 52.7mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
