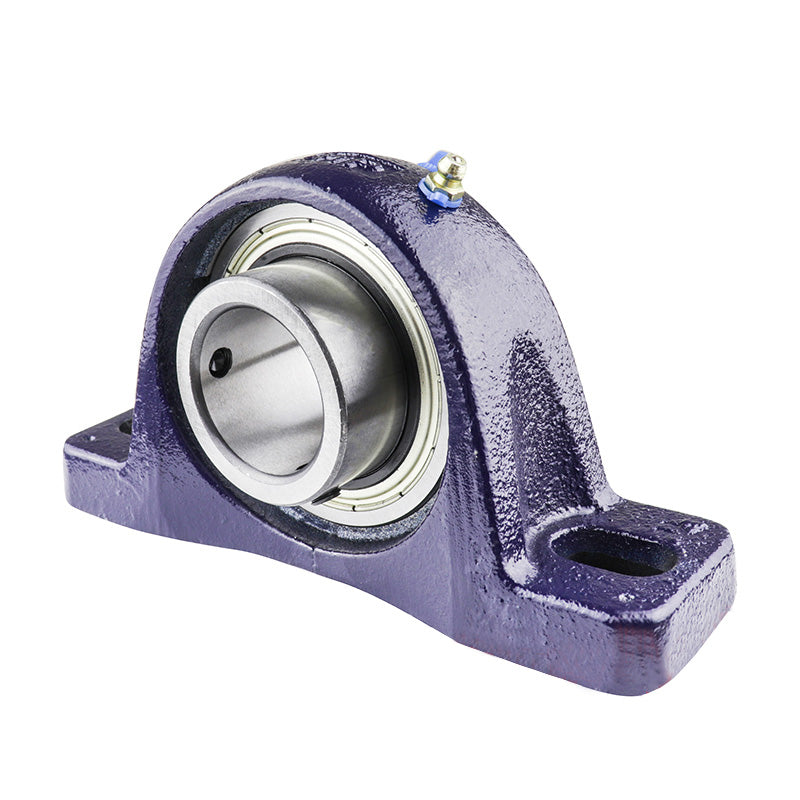

• RHP SL60 Two Bolt Cast Iron Pillow Block and 60mm Bore Grub Screw Full Width Insert
1 1

SKU: SL60-RHP

RHP SL60 Two Bolt Cast Iron Pillow Block and 60mm Bore Grub Screw Full Width Insert

RHP SL60 Two Bolt Cast Iron Pillow Block and 60mm Bore Grub Screw Full Width Insert
$167.23 ex VAT
$167.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $112.01
20+ $105.72
30+ $104.46
40+ $103.20
50+ $101.94
75+ $100.69
100+ $94.39
200+ $93.13
250+ $91.88
500+ $90.62
1000+ $88.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Style:
SL
Bolt Hole Centres:
182.6-204.8mm
Technical
Bore 60mm
L 249mm
H 68.25mm
H1 28.6mm
H2 138.1mm
J max 204.8mm
J min 182.6mm
G 16mm
A 69.8mm
A1 46mm
B 65.07mm
s 25.45mm
s1 -mm
d1 75.34mm
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Insert <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
