• RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert
1 1

SKU: SL7/8DEC-RHP

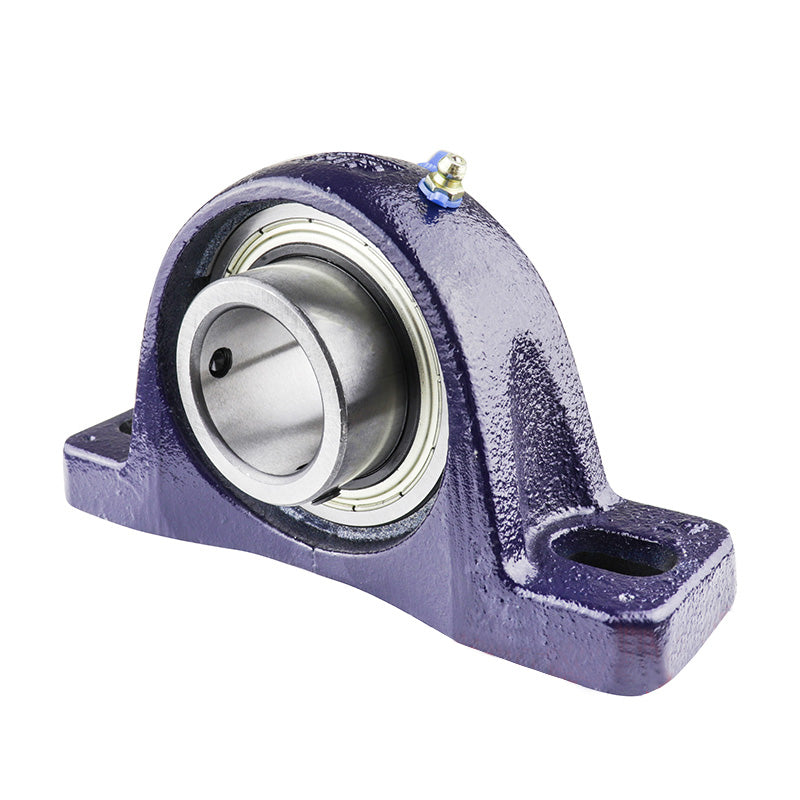

RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert

RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert
$62.79 ex VAT
$62.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $42.06
20+ $39.70
30+ $39.23
40+ $38.75
50+ $38.28
75+ $37.81
100+ $35.45
200+ $34.97
250+ $34.50
500+ $34.03
1000+ $33.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
SL
Bolt Hole Centres:
3.866-4.339 inch
Technical
Bore 7/8 inch
L 5.472 inch
H 1.312 inch
H1 0.504 inch
H2 2.669 inch
J max 4.339 inch
J min 3.866 inch
G 0.375 inch
A 1.417 inch
A1 0.965 inch
B3 1.748 inch
s2 0.689 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Insert <a href="advanced_search_result.php?keywords=1025-7/8DECG+insonly">1025-7/8DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
