SKU: SLC1.1/2EC-RHP

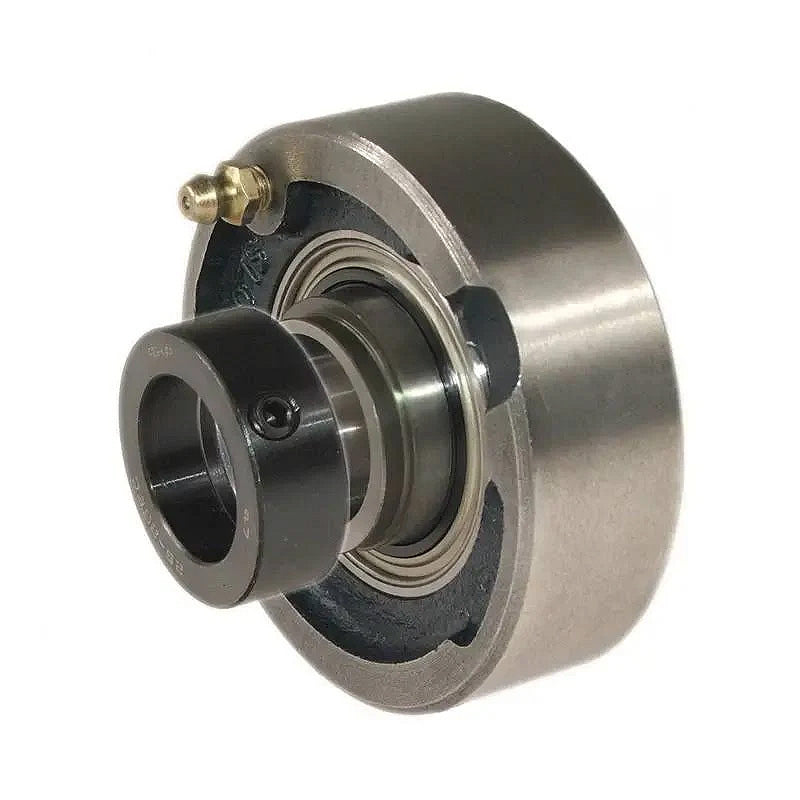

RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days
RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days
Regular price
$132.46
ex VAT
Regular price
Sale price
$132.46
ex VAT
In stock
Price Break
10+
$98.68
20+
$94.70
30+
$92.70
40+
$89.71
50+
$87.72
75+
$82.73
100+
$69.78
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 106.39mm
- Style:
- SLC

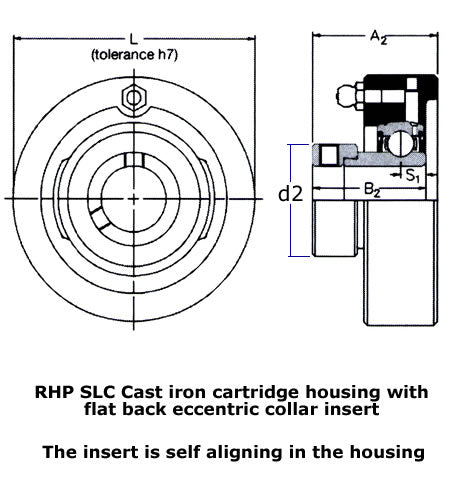

Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 4.1885 inch |
| A | 1.469 inch |
| A2 | 2.019 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.374 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-1-1/2ECG+insonly">1240-1-1/2ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
