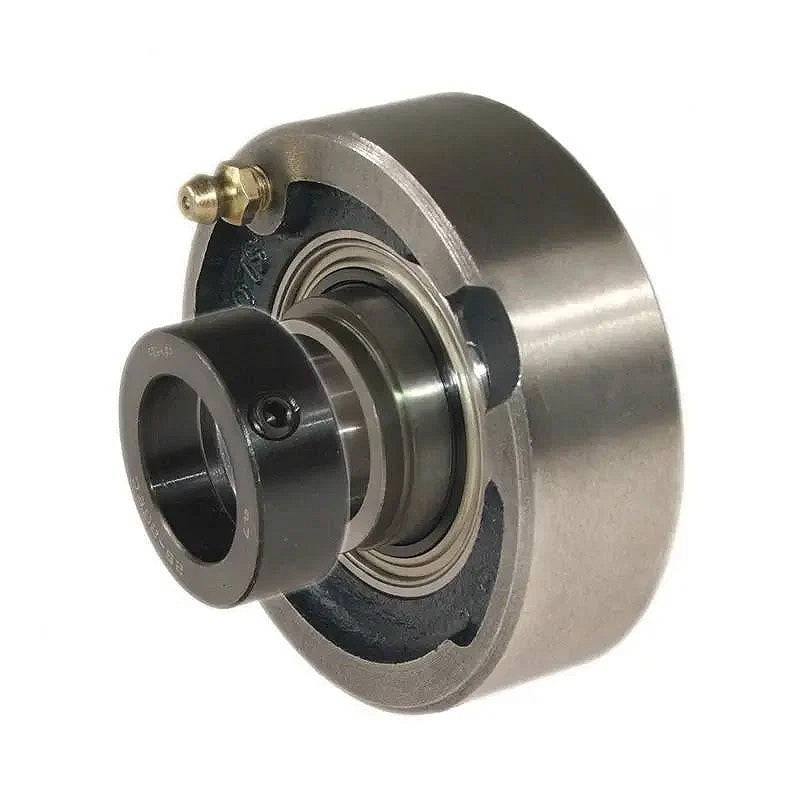

• RHP SLC1-1/4ECR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter
1 1

SKU: SLC1.1/4ECR-RHP

RHP SLC1-1/4ECR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter

RHP SLC1-1/4ECR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter
$71.28 ex VAT
$71.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.75
20+ $45.07
30+ $44.53
40+ $43.99
50+ $43.46
75+ $42.92
100+ $40.24
200+ $39.70
250+ $39.16
500+ $38.63
1000+ $37.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
88.93mm
Style:
SLC
Technical
Bore 1-1/4 inch
L 3.501 inch
A 1.094 inch
A2 1.597 inch
B2 1.405 inch
s1 0.356 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4ECG+insonly">1230-1-1/4ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
