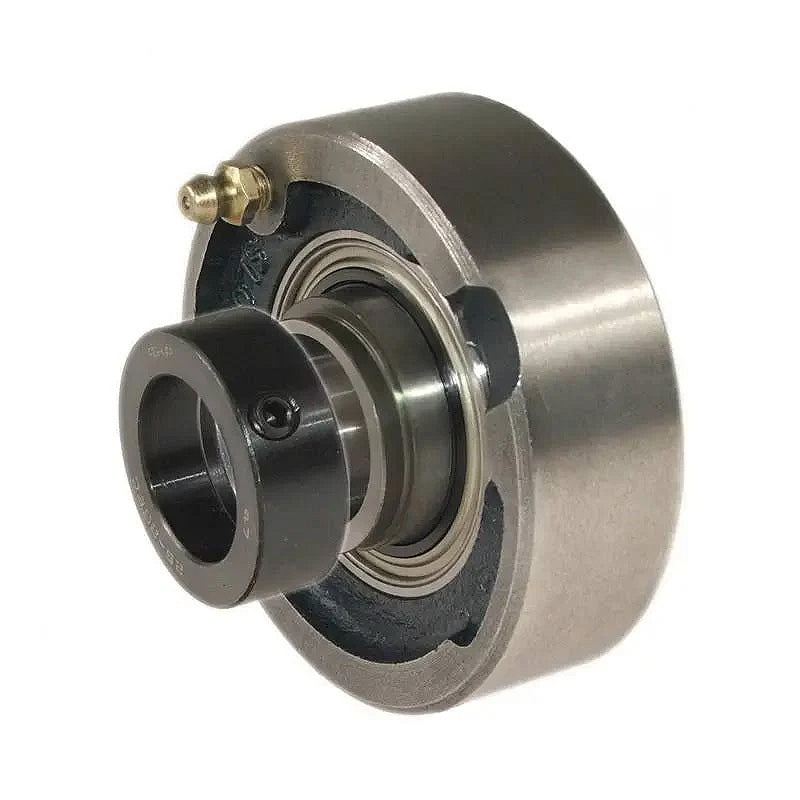

• RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
1 1

SKU: SLC1.11/16EC-RHP

RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter

RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
$112.24 ex VAT
$112.24 ex VAT
Sale Sold out

In stock

Price Break
10+ $75.18
20+ $70.95
30+ $70.11
40+ $69.26
50+ $68.42
75+ $67.57
100+ $63.35
200+ $62.51
250+ $61.66
500+ $60.82
1000+ $59.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Outside Diameter:
111.15mm
Style:
SLC
Technical
Bore 1-11/16 inch
L 4.376 inch
A 1.437 inch
A2 2.003 inch
B2 1.718 inch
s1 0.435 inch
d2 2.5 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.1 kg
Insert <a href="advanced_search_result.php?keywords=1245-1-11/16ECG+insonly">1245-1-11/16ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
