SKU: SLC1/2EC-RHP

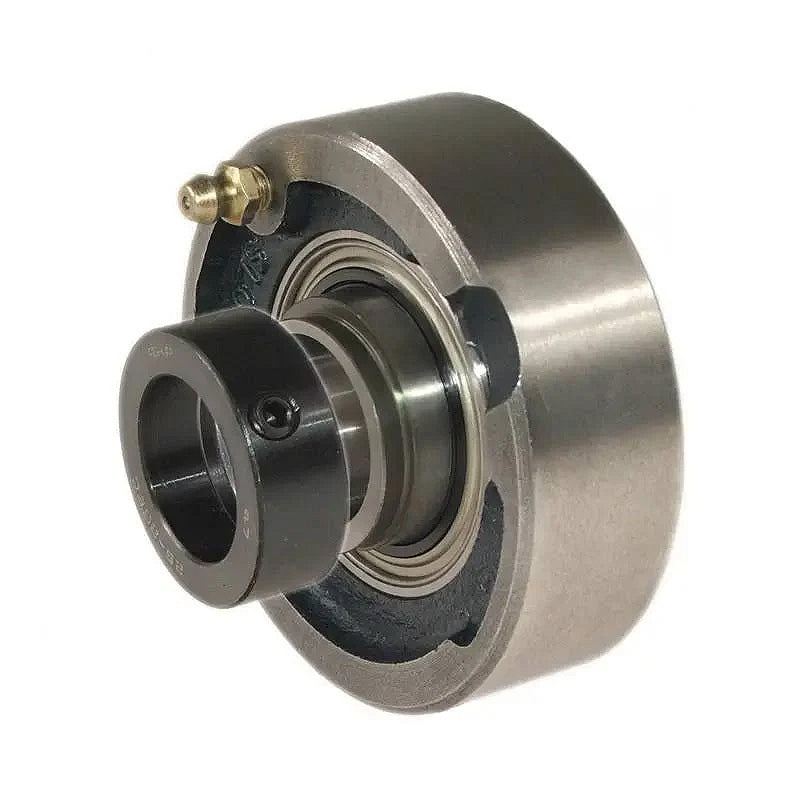

RHP SLC1/2EC Cast Iron Cartridge Unit with 1/2 inch Bore Insert 68.29mm Outside Diameter
RHP SLC1/2EC Cast Iron Cartridge Unit with 1/2 inch Bore Insert 68.29mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 68.29mm
- Style:
- SLC
Technical
Technical
| Bore | 1/2 inch |
|---|---|
| L | 2.6885 inch |
| A | 0.875 inch |
| A2 | 1.195 inch |
| B2 | 1.124 inch |
| s1 | 0.258 inch |
| d2 | 1.125 inch |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-1/2ECG+insonly">1017-1/2ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
