SKU: SLC1.5/8DEC-RHP

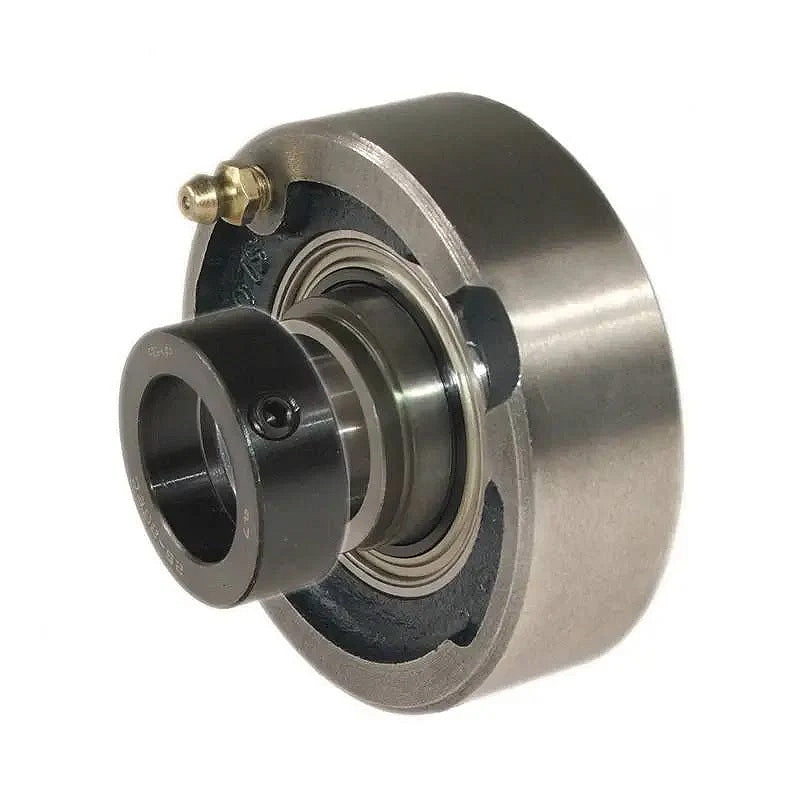

RHP SLC1-5/8DEC Cast Iron Cartridge Unit with 1-5/8 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-5/8DEC Cast Iron Cartridge Unit with 1-5/8 inch Bore Insert 111.15mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A3 | 2.093 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-5/8DECG+insonly">1045-1-5/8DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
