SKU: SLC1.7/16-RHP

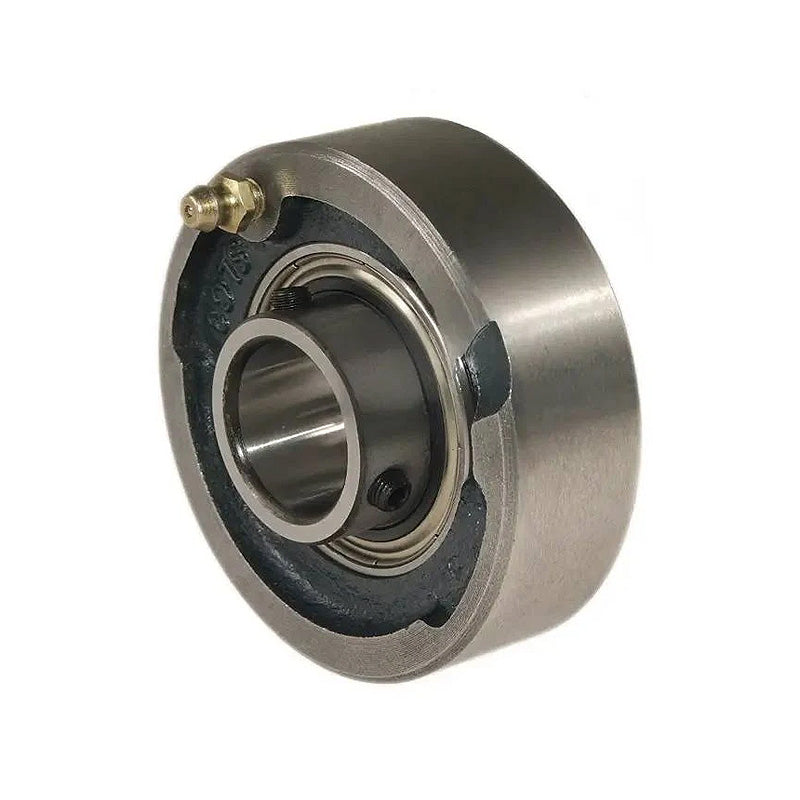

RHP SLC1-7/16 Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter
RHP SLC1-7/16 Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter
Regular price
$80.77
ex VAT
Regular price
Sale price
$80.77
ex VAT
In stock
Price Break
10+
$54.10
20+
$51.06
30+
$50.46
40+
$49.85
50+
$49.24
75+
$48.63
100+
$45.59
200+
$44.98
250+
$44.38
500+
$43.77
1000+
$42.55
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 98.45mm
- Style:
- SLC
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 3.876 inch |
| A | 1.219 inch |
| A1 | 1.609 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
