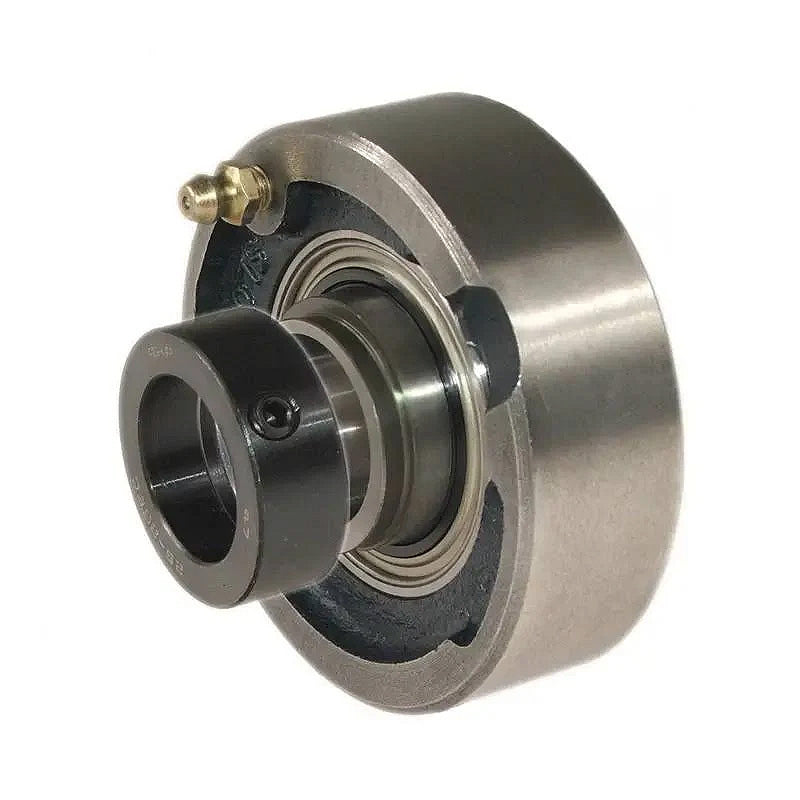

• RHP SLC1-7/16DEC Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter
1 1

SKU: SLC1.7/16DEC-RHP

RHP SLC1-7/16DEC Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter

RHP SLC1-7/16DEC Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter
$92.89 ex VAT
$92.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $62.22
20+ $58.72
30+ $58.02
40+ $57.32
50+ $56.62
75+ $55.93
100+ $52.43
200+ $51.73
250+ $51.03
500+ $50.33
1000+ $48.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
98.45mm
Style:
SLC
Technical
Bore 1-7/16 inch
L 3.876 inch
A 1.219 inch
A3 1.881 inch
B3 2015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16DECG+insonly">1035-1-7/16DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
