SKU: SLC1A-RHP

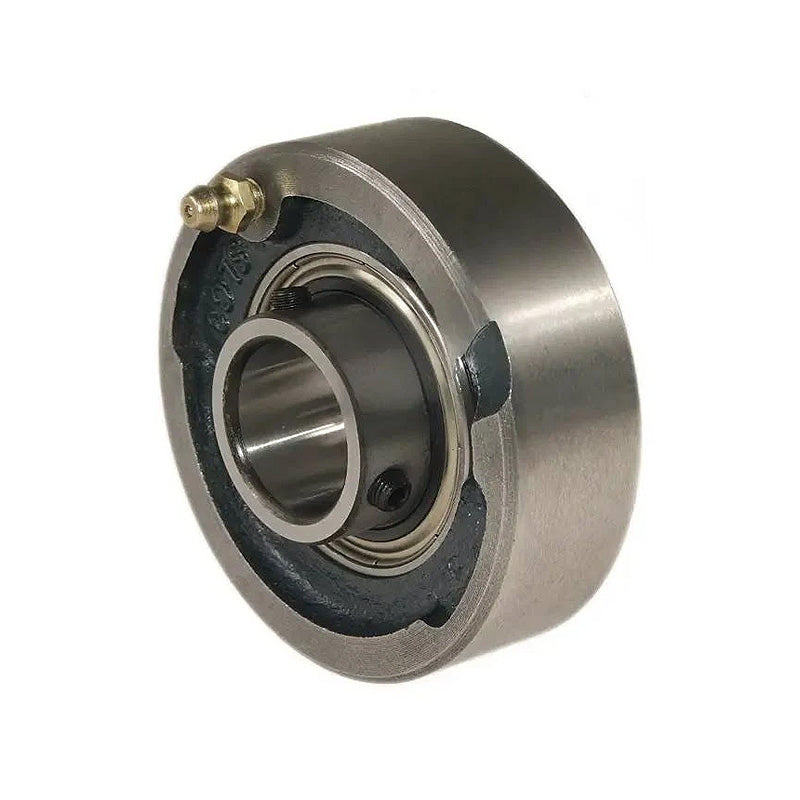

RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter

RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Regular price $53.68 ex VAT
Regular price Sale price $53.68 ex VAT
Sale Sold out

In stock

Price Break
10+ $35.96
20+ $33.94
30+ $33.54
40+ $33.13
50+ $32.73
75+ $32.32
100+ $30.30
200+ $29.90
250+ $29.50
500+ $29.09
1000+ $28.28
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1 inch
L 3.126 inch
A 1.031 inch
A1 1.297 inch
A2 1.438 inch
A3 1.577 inch
B 1.343 inch
B1 1077 inch
B2 1.217 inch
B3 1.748 inch
s 0.564 inch
s1 0.298 inch
s2 0.689 inch
d1 1.339 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
