• RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
1 1

SKU: SLC1EC-RHP

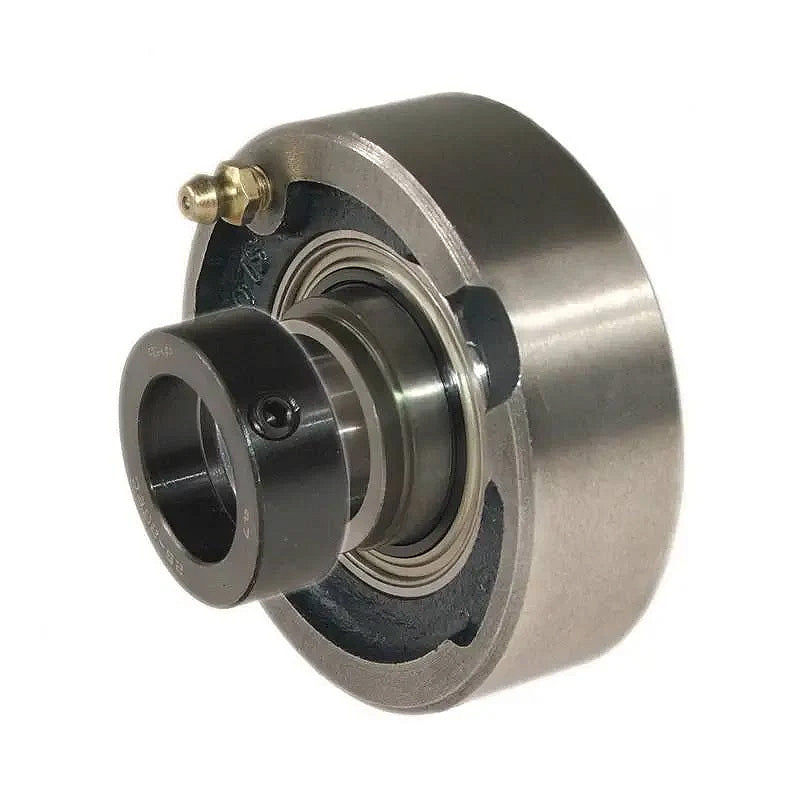

RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter

RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
$56.42 ex VAT
$56.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $37.79
20+ $35.67
30+ $35.24
40+ $34.82
50+ $34.39
75+ $33.97
100+ $31.85
200+ $31.42
250+ $31.00
500+ $30.57
1000+ $29.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
79.4mm
Style:
SLC
Technical
Bore 1 inch
L 3.126 inch
A 1.031 inch
A2 1.438 inch
B2 1.217 inch
s1 0.298 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
