SKU: SLC2.1/8DEC-RHP

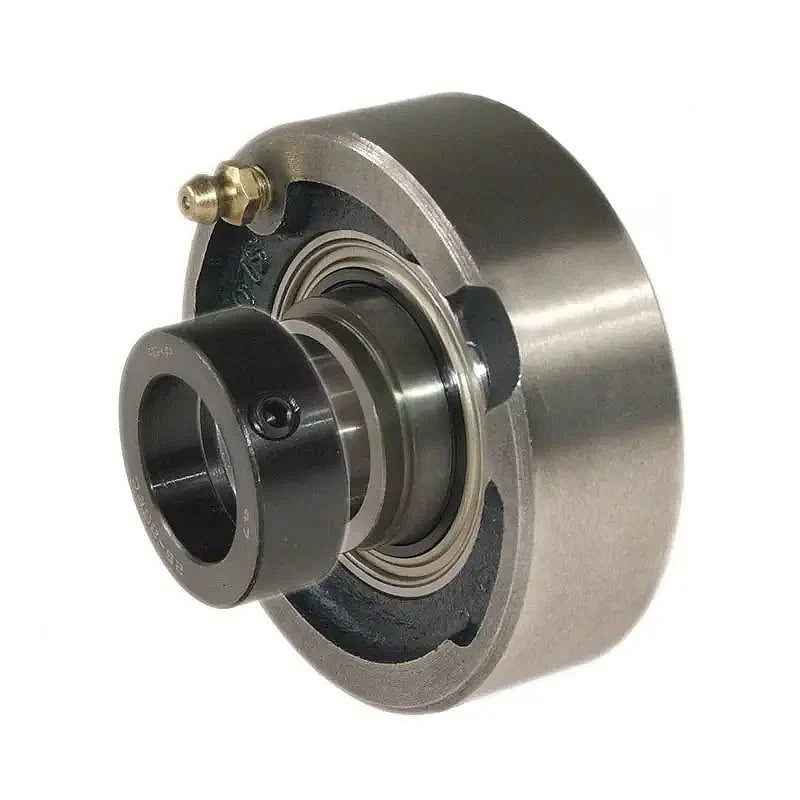

RHP SLC2-1/8DEC Cast Iron Cartridge Unit with 2-1/8 inch Bore Insert 125.44mm Outside Diameter

RHP SLC2-1/8DEC Cast Iron Cartridge Unit with 2-1/8 inch Bore Insert 125.44mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/8 inch
L 4.9385 inch
A 1.594 inch
A3 2.513 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 2.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-1/8DECG+insonly">1055-2-1/8DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
