SKU: SLC2.7/16DEC-RHP

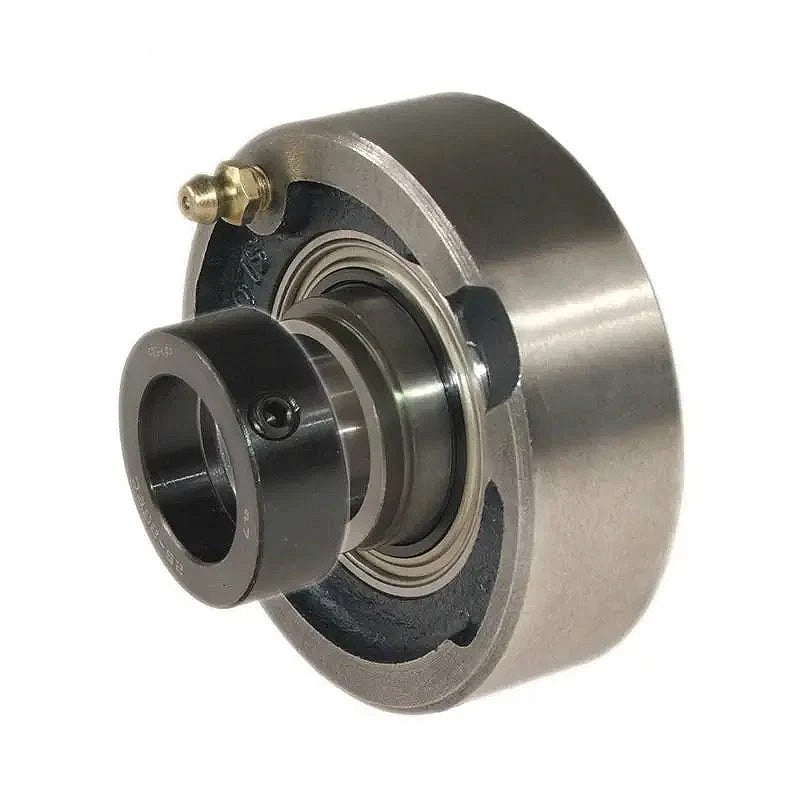

RHP SLC2-7/16DEC Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 149.25mm Outside Diameter
RHP SLC2-7/16DEC Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 149.25mm Outside Diameter
Regular price
$238.70
ex VAT
Regular price
Sale price
$238.70
ex VAT
In stock
Price Break
10+
$159.89
20+
$150.91
30+
$149.11
40+
$147.31
50+
$145.52
75+
$143.72
100+
$134.74
200+
$132.94
250+
$131.14
500+
$129.35
1000+
$125.76
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 149.25mm
- Style:
- SLC
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 5.876 inch |
| A | 1.625 inch |
| A3 | 2.653 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16DECG+insonly">1060-2-7/16DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
