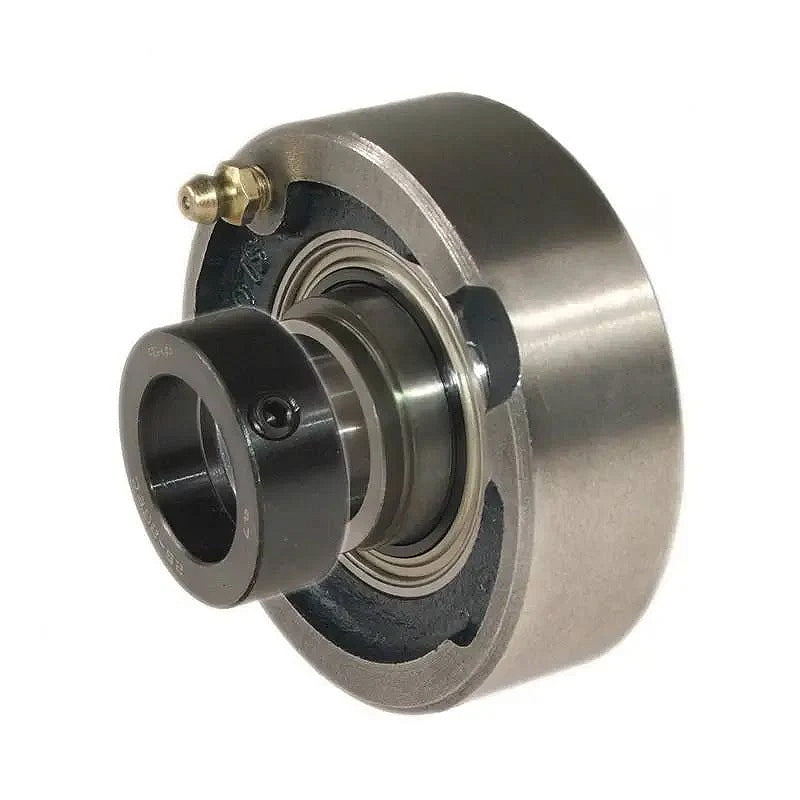

• RHP SLC20EC Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
1 1

SKU: SLC20EC-RHP

RHP SLC20EC Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter

RHP SLC20EC Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
$52.43 ex VAT
$52.43 ex VAT
Sale Sold out

In stock

Price Break
10+ $35.12
20+ $33.15
30+ $32.75
40+ $32.36
50+ $31.97
75+ $31.57
100+ $29.60
200+ $29.20
250+ $28.81
500+ $28.41
1000+ $27.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Outside Diameter:
74.64mm
Style:
SLC
Technical
Bore 20mm
L 74.637mm
A 22.22mm
A2 34.54mm
B2 30.92mm
s1 7.56mm
d2 33.3mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-20ECG+insonly">1020-20ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
