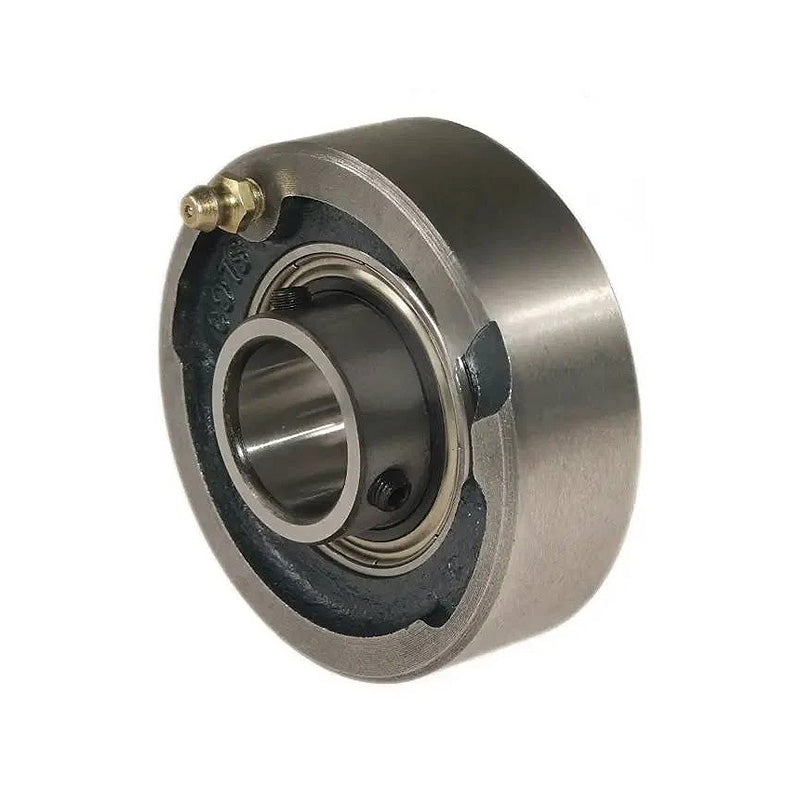

• RHP SLC45A Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
1 1

SKU: SLC45A-RHP

RHP SLC45A Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter

RHP SLC45A Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
$100.86 ex VAT
$100.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.56
20+ $63.76
30+ $63.00
40+ $62.24
50+ $61.48
75+ $60.73
100+ $56.93
200+ $56.17
250+ $55.41
500+ $54.65
1000+ $53.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Outside Diameter:
111.15mm
Style:
SLC
Technical
Bore 45mm
L 111.15mm
A 36.51mm
A1 48.44mm
A2 50.88mm
A3 53.16mm
B 49.23mm
B1 41.18mm
B2 43.64mm
B3 56.34mm
s 19.1mm
s1 11.05mm
s2 21.46mm
d1 57.3mm
d2 63.5mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.1 kg
Insert <a href="advanced_search_result.php?keywords=1245-45AG+insonly">1245-45AG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
