SKU: SLC55DEC-RHP

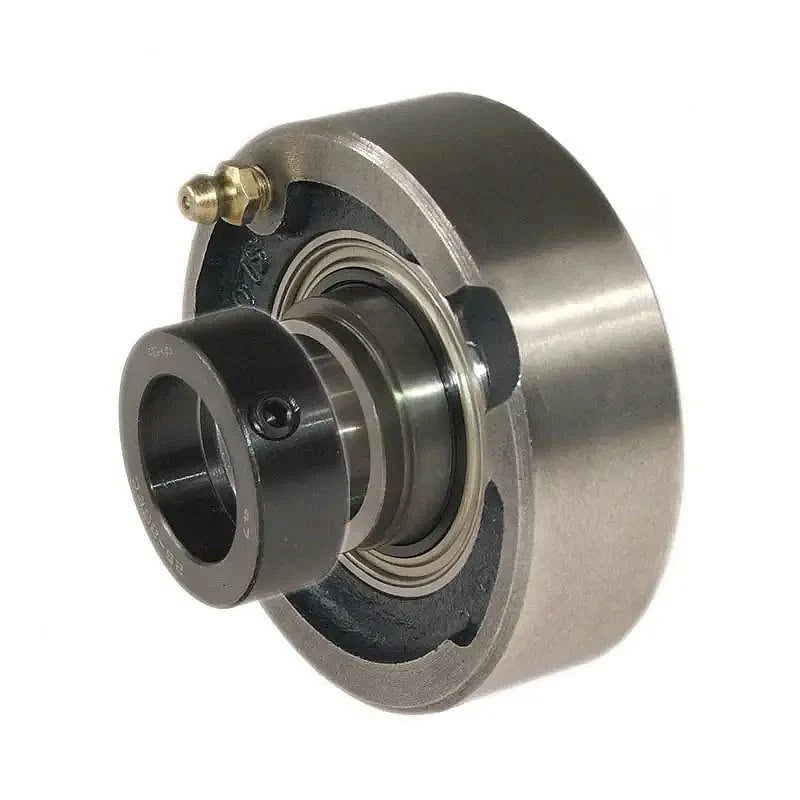

RHP SLC55DEC Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
RHP SLC55DEC Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
Regular price
$188.82
ex VAT
Regular price
Sale price
$188.82
ex VAT
In stock
Price Break
10+
$126.48
20+
$119.37
30+
$117.95
40+
$116.53
50+
$115.11
75+
$113.69
100+
$106.58
200+
$105.16
250+
$103.74
500+
$102.32
1000+
$99.48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 125.44mm
- Style:
- SLC
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 125.437mm |
| A | 40.48mm |
| A3 | 63.83mm |
| B3 | 71.44mm |
| s2 | 27.82mm |
| d2 | 76.2mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
