SKU: SLFE50A-RHP

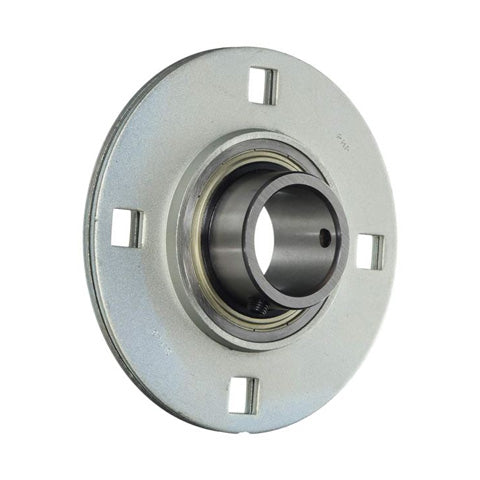

RHP SLFE50A 4 Bolt Round Pressed Steel Bearing Housing and 50mm Bore Insert
Out of stock
Share this product
Description
|
RHP SLFE A Series Round Pressed Steel Bearing Housings: Supplied with a flat back insert these galvanized steel construction housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SLFE
- Pitch Circle Diameter:
- 127mm

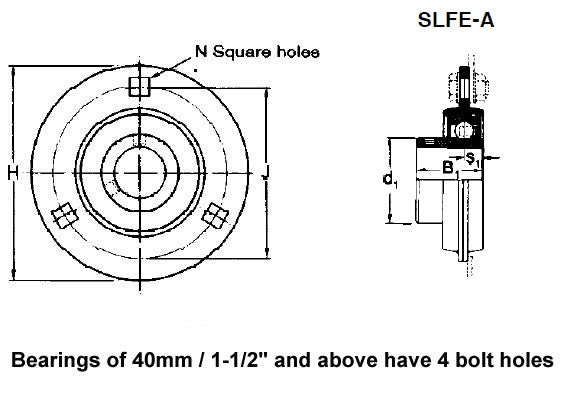

Technical
| Bore | 50mm |
|---|---|
| H | 155.6mm |
| H2 | 102mm |
| J | 127mm |
| N | 13.5mm |
| A | 10.5mm |
| A1 | 8mm |
| B | 51.59mm |
| B1 | 43.54mm |
| B2 | 43.64mm |
| B3 | 62.7mm |
| s | 19.1mm |
| s1 | 11.05mm |
| s2 | 24.65mm |
| d1 | 62.2mm |
| d2 | 69.85mm |
| Max radial housing load | 8450 N |
| Rec max speed | 1500 rpm |
| Weight | 1.8 kg |
| Casting group | 1050 |
