SKU: SLG025_NAK
NAK SLG025 Hardened Stainless Sleeve for Shafts 25.350-25.450mm - Allow 7-10 Days
NAK SLG025 Hardened Stainless Sleeve for Shafts 25.350-25.450mm - Allow 7-10 Days
Regular price
$23.52
ex VAT
Regular price
Sale price
$23.52
ex VAT
In stock
Price Break
10+
$17.52
19+
$16.82
29+
$16.46
39+
$15.93
49+
$15.58
74+
$14.69
99+
$12.39
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description

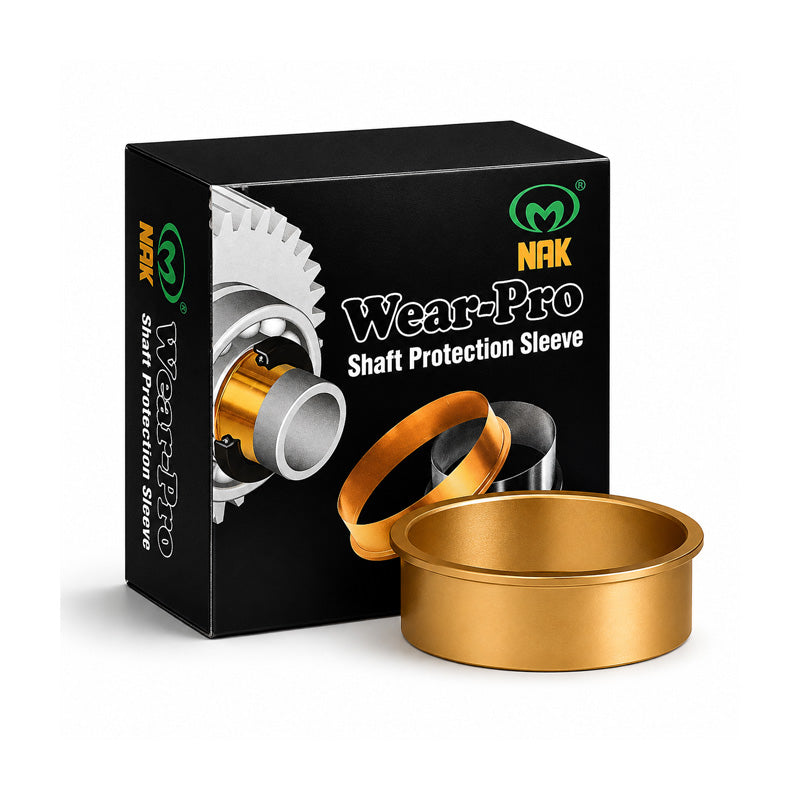

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 11.1mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 25.4mm
- Flange Diameter:
- 31mm
Technical
Technical
| Shaft Diameter Range (A) | 25.350-25.450mm |
|---|---|
| Nominal Shaft Diameter (A) | 25.4mm |
| Flange Diameter (D) | 31mm |
| Width on Shaft (X) | 8mm |
| Overall Width (Y) | 11.1mm |
| Installation Depth (Z) | 50.8mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
