SKU: SLG082_IMP_NAK

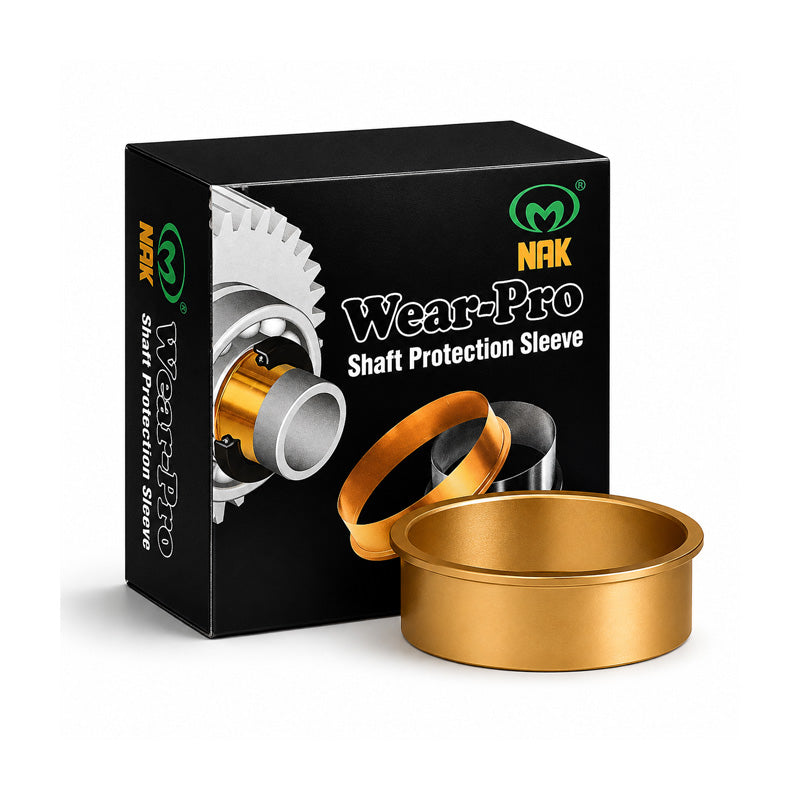

NAK SLG082 Hardened Stainless Sleeve for Shafts 1.872-1.878 inch - Allow 7-10 Days
NAK SLG082 Hardened Stainless Sleeve for Shafts 1.872-1.878 inch - Allow 7-10 Days
Regular price
$23.55
ex VAT
Regular price
Sale price
$23.55
ex VAT
In stock
Price Break
10+
$17.54
19+
$16.83
29+
$16.48
39+
$15.95
49+
$15.59
74+
$14.71
99+
$12.40
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.689 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.875 inch
- Flange Diameter:
- 2.205 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.872-1.878 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.875 inch |
| Flange Diameter (D) | 2.205 inch |
| Width on Shaft (X) | 0.563 inch |
| Overall Width (Y) | 0.689 inch |
| Installation Depth (Z) | 1 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
