SKU: SLG090_IMP_NAK

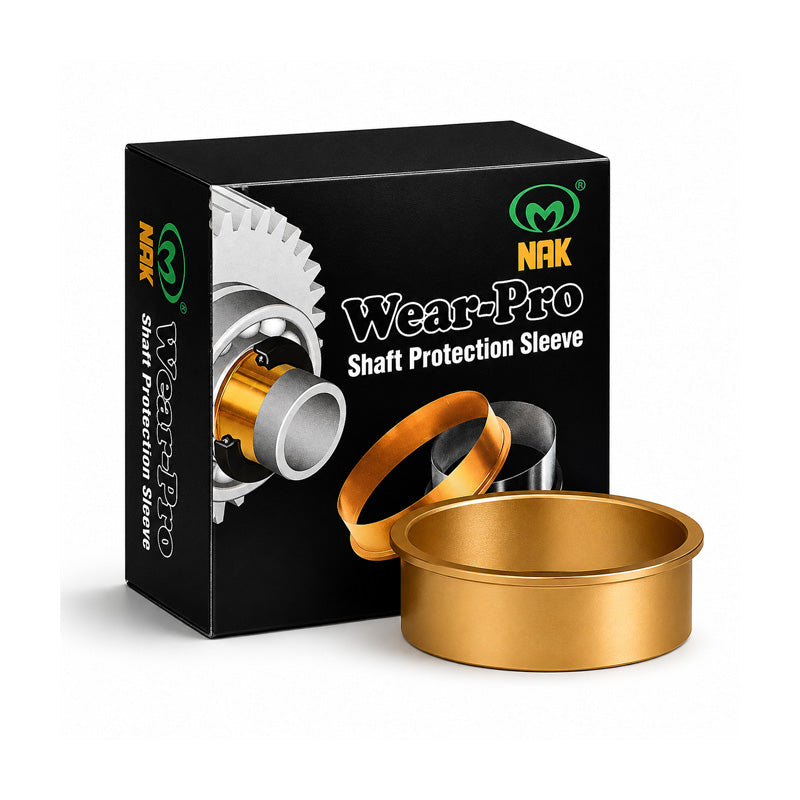

NAK SLG090 Hardened Stainless Sleeve for Shafts 1.997-2.003 inch - Allow 7-10 Days
NAK SLG090 Hardened Stainless Sleeve for Shafts 1.997-2.003 inch - Allow 7-10 Days
Regular price
$26.48
ex VAT
Regular price
Sale price
$26.48
ex VAT
In stock
Price Break
10+
$19.73
19+
$18.93
29+
$18.53
39+
$17.94
49+
$17.54
74+
$16.54
99+
$13.95
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.689 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 2 inch
- Flange Diameter:
- 2.406 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.997-2.003 inch |
|---|---|
| Nominal Shaft Diameter (A) | 2 inch |
| Flange Diameter (D) | 2.406 inch |
| Width on Shaft (X) | 0.563 inch |
| Overall Width (Y) | 0.689 inch |
| Installation Depth (Z) | 1 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
