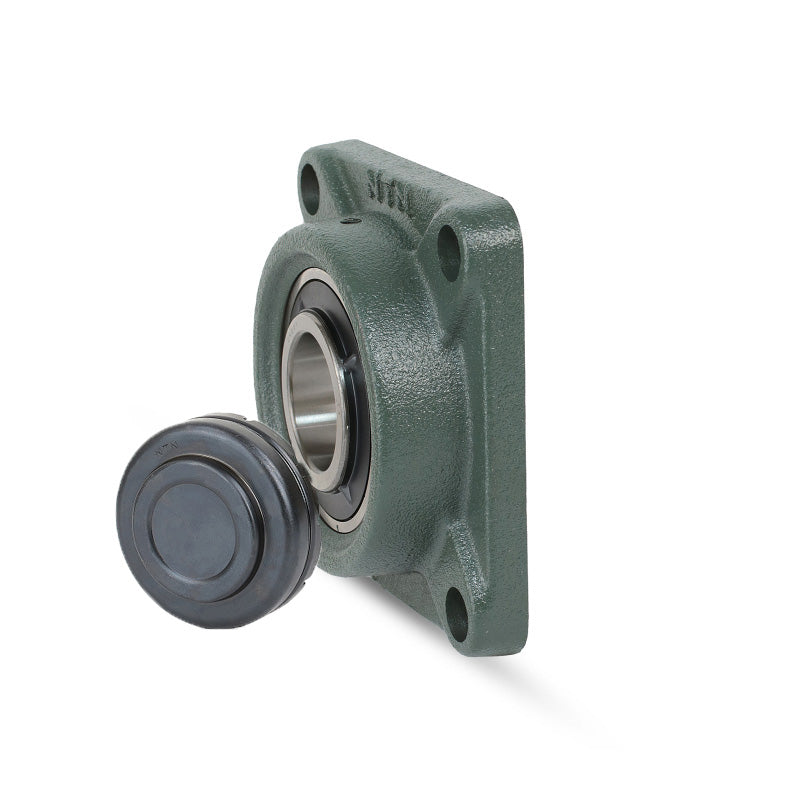

• NTN SM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: SM-UCF208D1-NTN

NTN SM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.65 ex VAT
$73.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.87
4+ $52.65
9+ $51.54
19+ $49.88
49+ $48.77
99+ $46.00
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCF
Bolt Hole Centres:
102mm
Technical
--- Dimensions
Shaft diameter 40mm
L 130mm
J 102mm
A<sub>2</sub> 21mm
A<sub>1</sub> 15mm
A 36mm
N 16mm
B 49.2mm
S 19mm
t<sub>1</sub> 8mm
A<sub>4</sub> 62mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 1.8 kg
