• NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: SM-UCFC209D1-NTN

NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$68.60 ex VAT
$68.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $45.95
4+ $43.37
9+ $42.85
19+ $42.34
49+ $41.82
99+ $41.30
499+ $38.72
999+ $38.21
1999+ $37.69
2999+ $37.17
4999+ $36.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCFC
Pitch Circle Diameter:
93.3mm
Technical

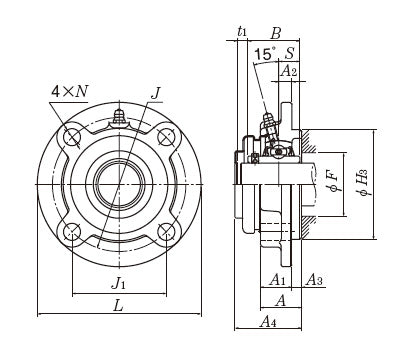

--- Dimensions
Shaft diameter 45mm
L 160mm
J 132mm
(J<sub>1</sub>) 93.3mm
A<sub>2</sub> 10mm
N 16mm
A<sub>3</sub> 12mm
A<sub>1</sub> 26mm
A 38mm
H<sub>3</sub> 105mm
B 49.2mm
S 19mm
t<sub>1</sub> 8mm
A<sub>4</sub> 63mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.7 kg
