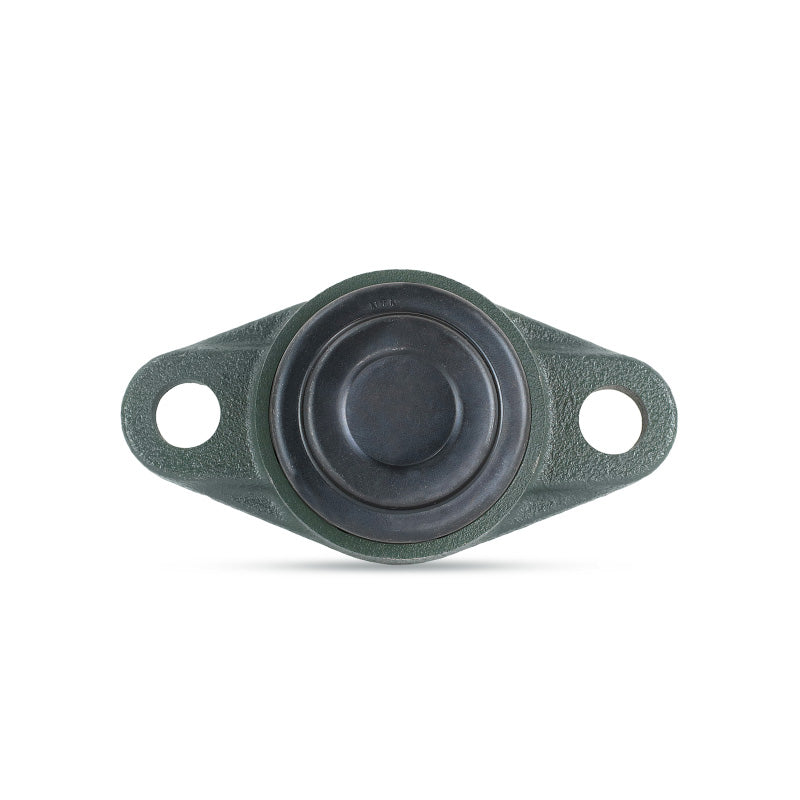

• NTN SM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: SM-UCFL207D1-NTN

NTN SM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$58.88 ex VAT
$58.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.87
4+ $42.09
9+ $41.21
19+ $39.88
49+ $38.99
99+ $36.78
499+ $31.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCFL
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter 35mm
H 161mm
J 130mm
A<sub>2</sub> 19mm
A<sub>1</sub> 15mm
A 34mm
N 16mm
L 90mm
B 42.9mm
S 17.5mm
t<sub>1</sub> 8mm
A<sub>4</sub> 55mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.2 kg
