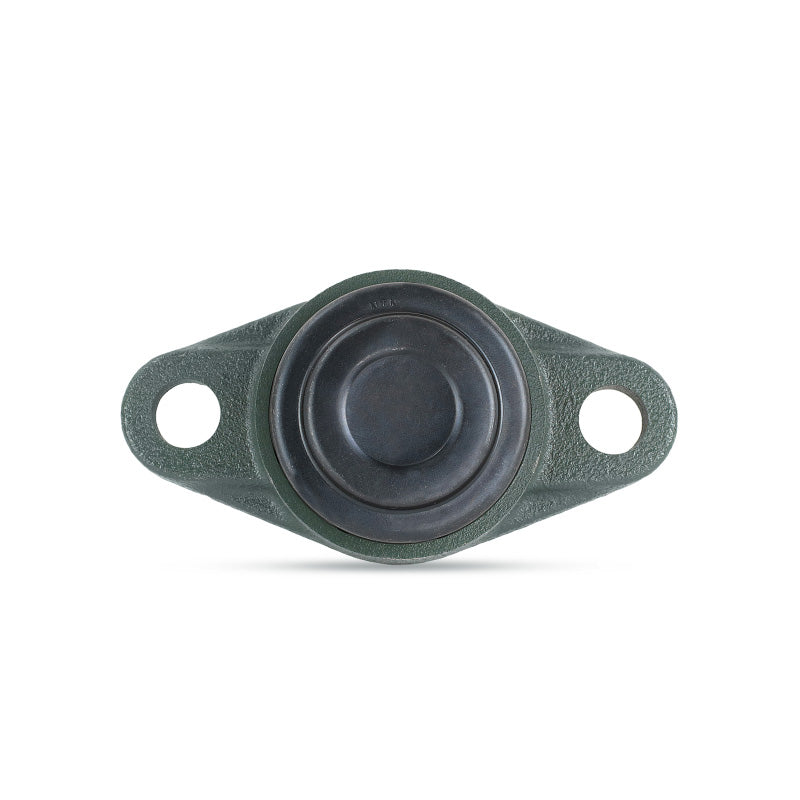

• NTN SM-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: SM-UCFL211D1-NTN

NTN SM-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$91.91 ex VAT
$91.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $61.56
4+ $58.10
9+ $57.41
19+ $56.72
49+ $56.03
99+ $55.34
499+ $51.88
999+ $51.19
1999+ $50.49
2999+ $49.80
4999+ $48.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCFL
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter 55mm
H 224mm
J 184mm
A<sub>2</sub> 25mm
A<sub>1</sub> 18mm
A 43mm
N 19mm
L 130mm
B 55.6mm
S 22.2mm
t<sub>1</sub> 10mm
A<sub>4</sub> 71mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 3 kg
