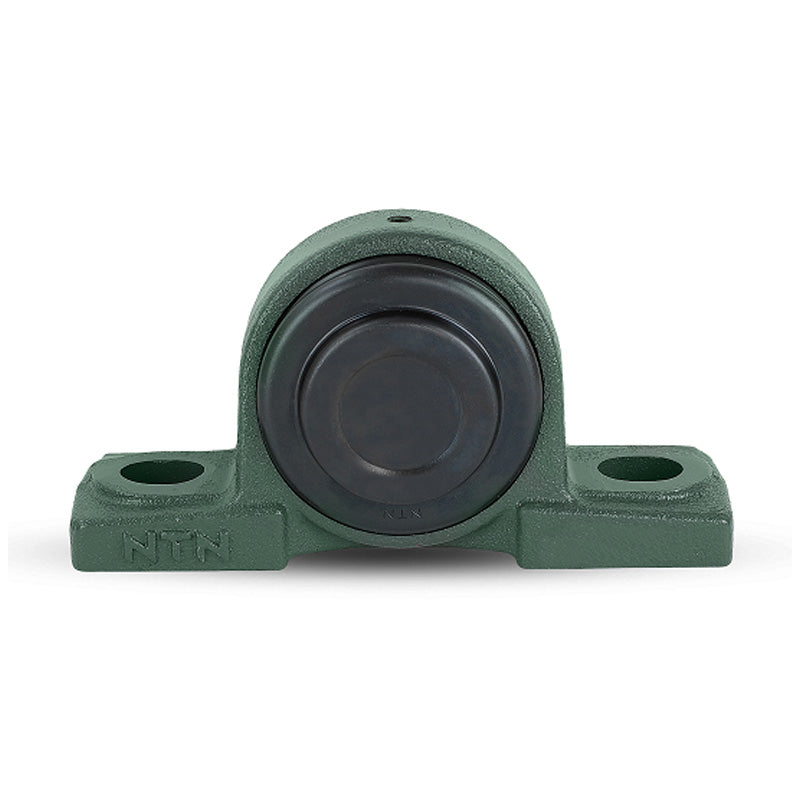

• NTN SM-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: SM-UCP210D1-NTN

NTN SM-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$103.07 ex VAT
$103.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.78
4+ $73.68
9+ $72.13
19+ $69.80
49+ $68.25
99+ $64.37
499+ $54.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter 50mm
H 57.2mm
L 206mm
J 159mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 21mm
H<sub>2</sub> 114mm
L<sub>1</sub> 65mm
B 51.6mm
S 19mm
t<sub>1</sub> 8mm
A<sub>4</sub> 87mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 2.8 kg
