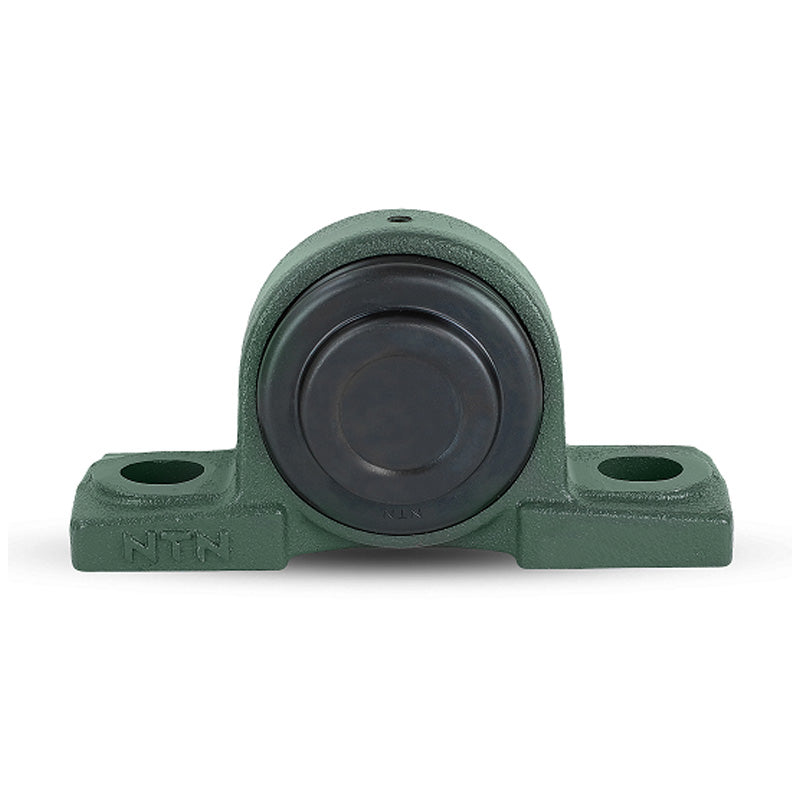

• NTN SM-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: SM-UCP212D1-NTN

NTN SM-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
$176.58 ex VAT
$176.58 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.55
4+ $126.24
9+ $123.58
19+ $119.59
49+ $116.93
99+ $110.29
499+ $93.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCP
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter 60mm
H 69.8mm
L 241mm
J 184mm
A 70mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 25mm
H<sub>2</sub> 138mm
L<sub>1</sub> 70mm
B 65.1mm
S 25.4mm
t<sub>1</sub> 8mm
A<sub>4</sub> 102mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 5 kg
