SKU: SM-UKT209D1/H2309X-NTN

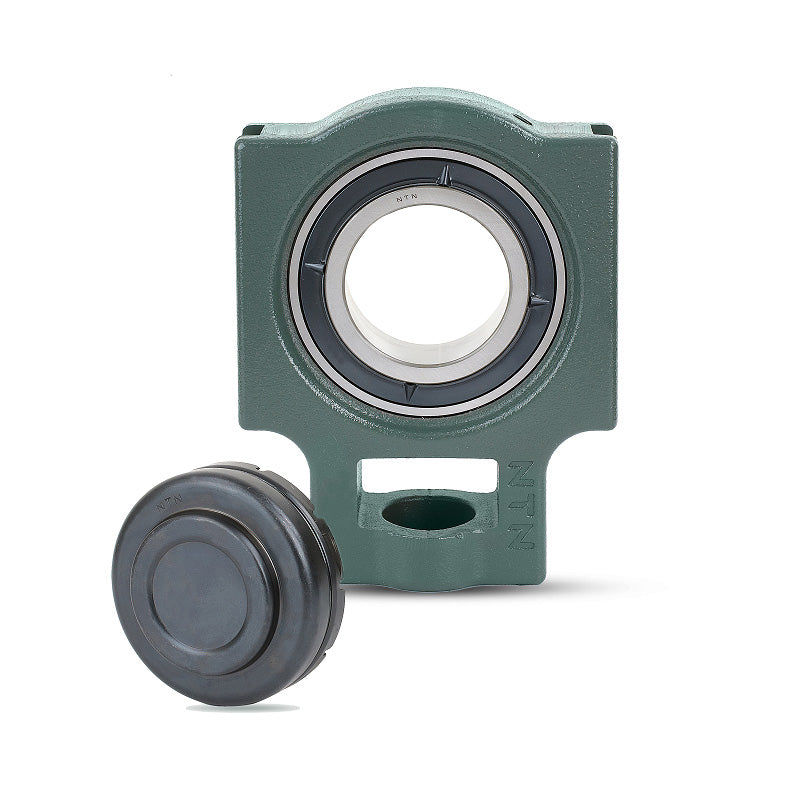

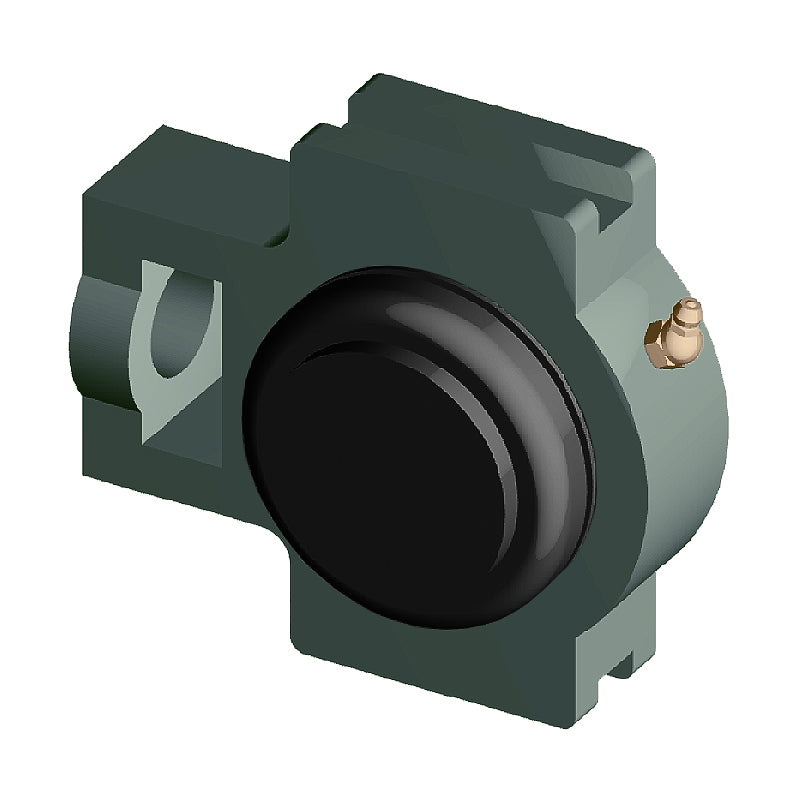

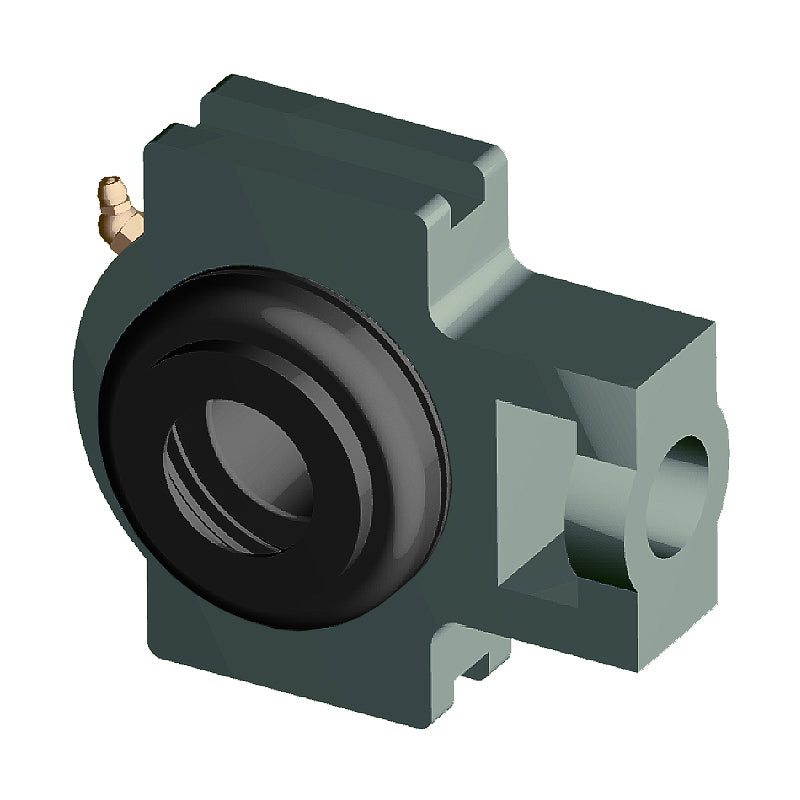

NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
NTN SM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
$117.85
ex VAT
Regular price
Sale price
$117.85
ex VAT
In stock
Price Break
3+
$87.79
4+
$84.25
9+
$82.47
19+
$79.81
49+
$78.04
99+
$73.60
499+
$62.08
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 83mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 117mm |
| L | 145mm |
| A<sub>2</sub> | 35mm |
| A | 49mm |
| r | 57mm |
| L<sub>1</sub> | 88mm |
| B<sub>1</sub> | 50mm |
| t<sub>1</sub> | 12mm |
| A<sub>4</sub> | 82mm |
| Mass | 2.6 kg |
