SKU: SM-UKT210D1/H2310X-NTN

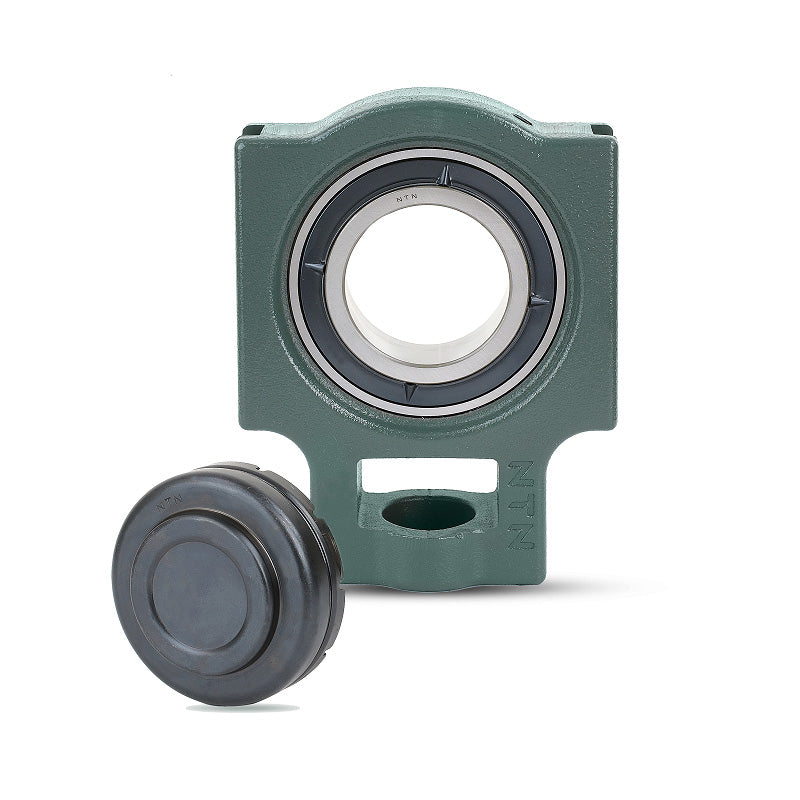

NTN SM-UKT210D1/H2310X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
NTN SM-UKT210D1/H2310X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
$147.20
ex VAT
Regular price
Sale price
$147.20
ex VAT
In stock
Price Break
3+
$109.66
4+
$105.23
9+
$103.02
19+
$99.69
49+
$97.48
99+
$91.94
499+
$77.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description

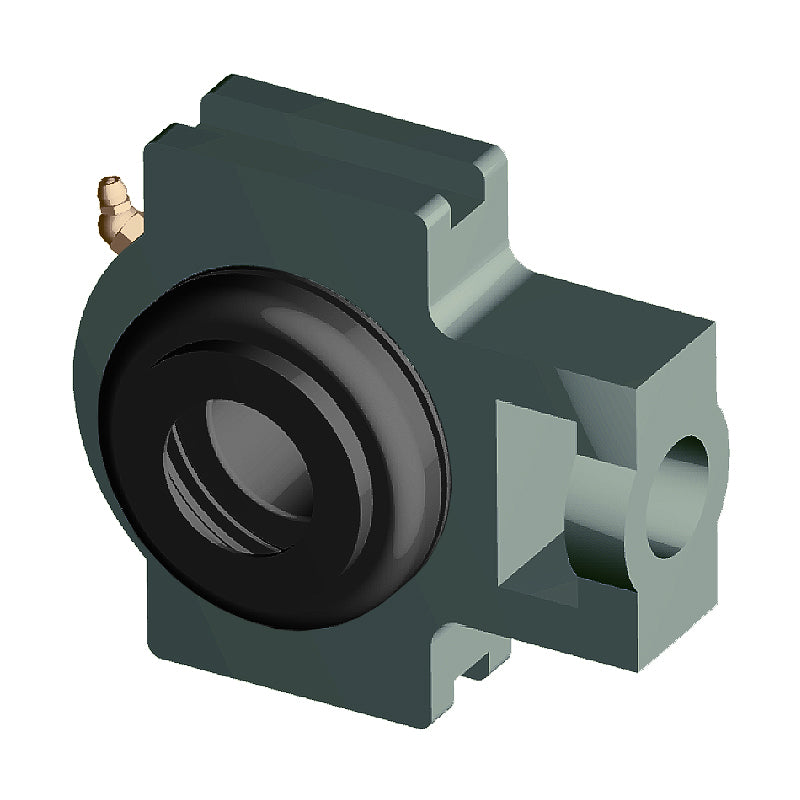

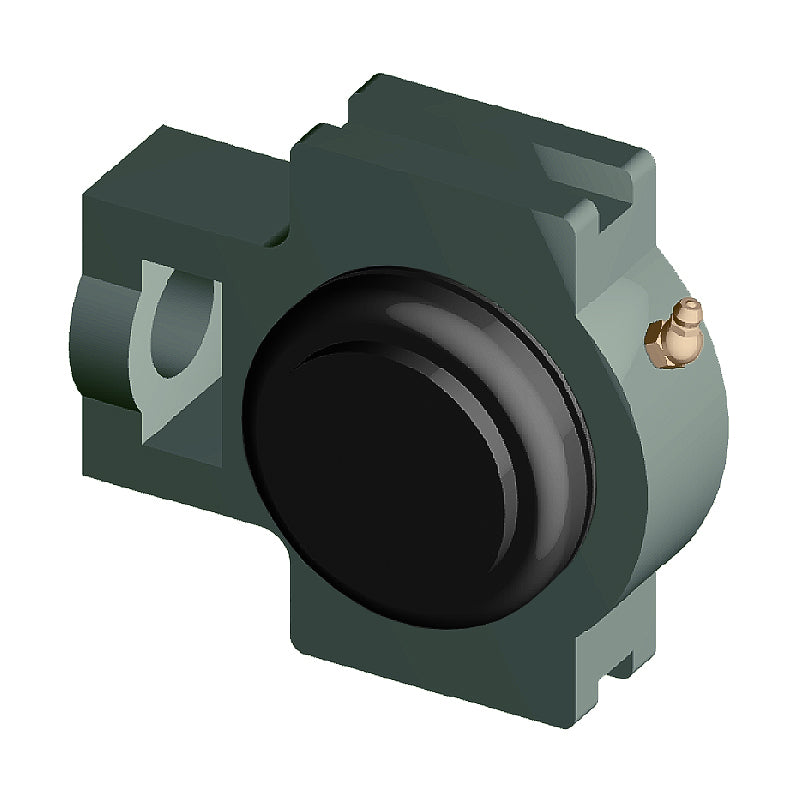

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 86mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 117mm |
| L | 151mm |
| A<sub>2</sub> | 37mm |
| A | 49mm |
| r | 59mm |
| L<sub>1</sub> | 92mm |
| B<sub>1</sub> | 55mm |
| t<sub>1</sub> | 13mm |
| A<sub>4</sub> | 87mm |
| Mass | 2.8 kg |
