SKU: SM-UKT211D1/H2311X-NTN

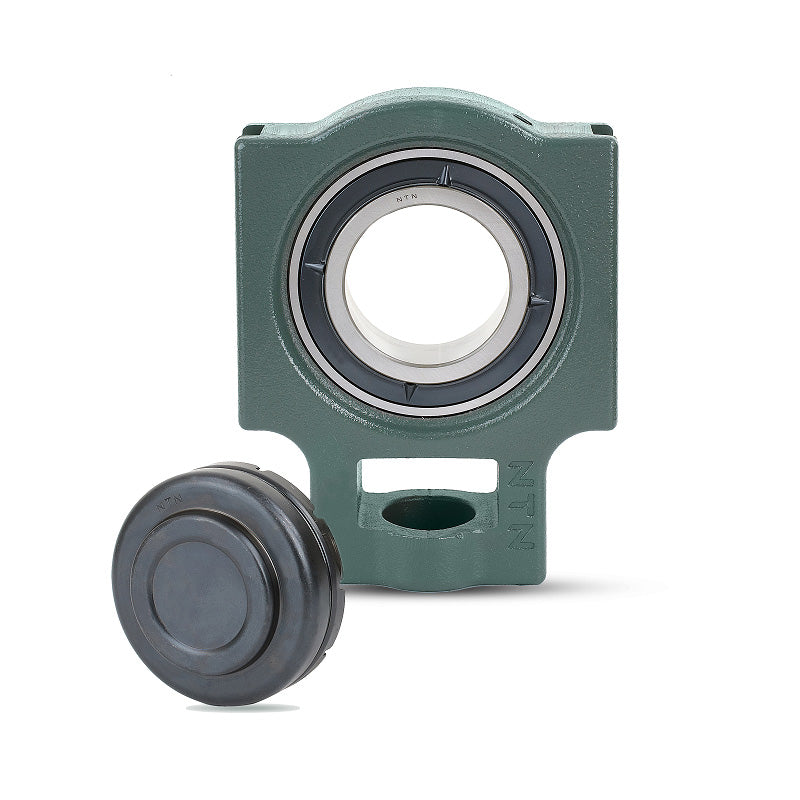

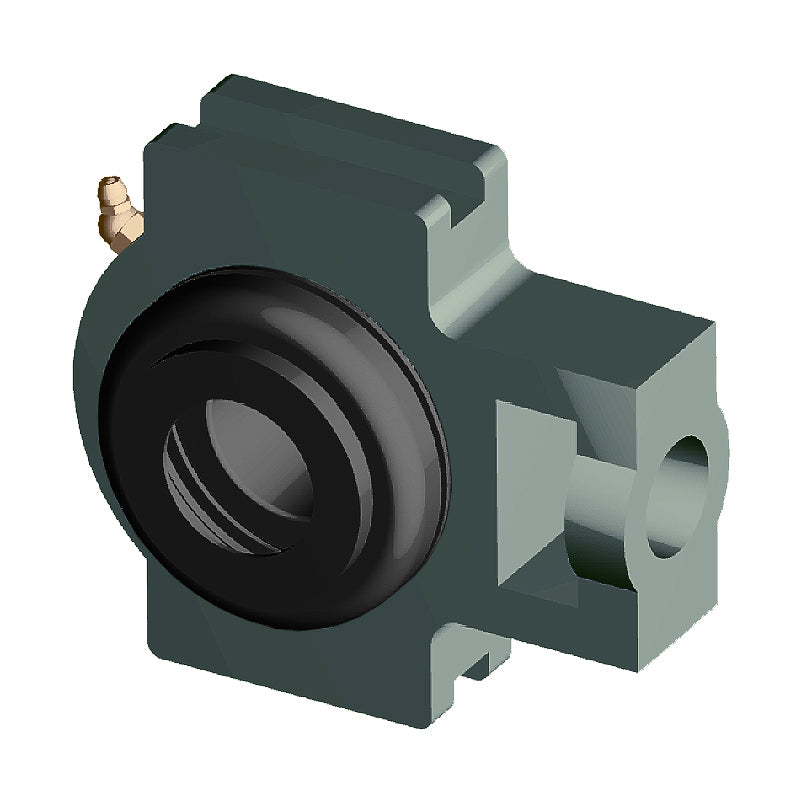

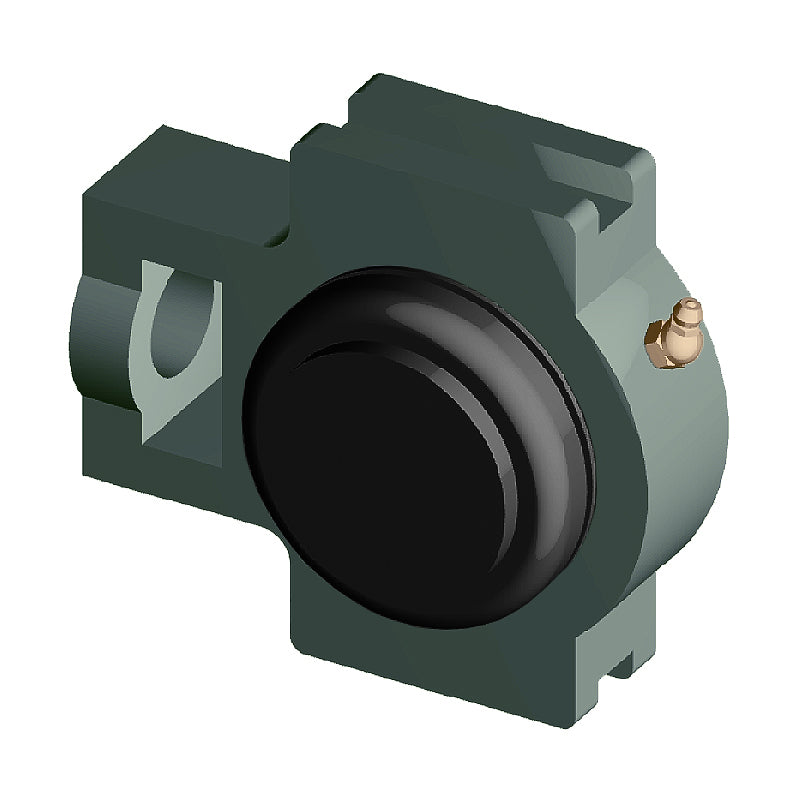

NTN SM-UKT211D1/H2311X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
NTN SM-UKT211D1/H2311X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
$176.68
ex VAT
Regular price
Sale price
$176.68
ex VAT
In stock
Price Break
3+
$131.62
4+
$126.30
9+
$123.64
19+
$119.66
49+
$117.00
99+
$110.35
499+
$93.07
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKT

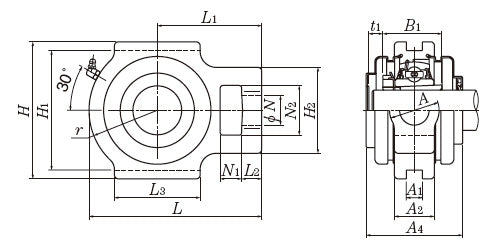

Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| N<sub>1</sub> | 25mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 95mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 171mm |
| A<sub>2</sub> | 38mm |
| A | 64mm |
| r | 65mm |
| L<sub>1</sub> | 106mm |
| B<sub>1</sub> | 59mm |
| t<sub>1</sub> | 14mm |
| A<sub>4</sub> | 92mm |
| Mass | 4.3 kg |
