SKU: SM25-MB
Major Branded SM25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- $129.33 ex VAT
- Sale price
- $129.33
- Regular price
-
Not in stock
Quantity Price Breaks
3
$115.10
5
$108.64
9
$107.34
19
$106.05
49
$104.76
74
$103.46
99
$97.00
199
$95.70
249
$94.41
499
$93.12
999
$90.53
SKU:
SM25-MB
Major Branded SM25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
- Regular price
- $129.33 ex VAT
- Sale price
- $129.33
- Regular price
-
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust

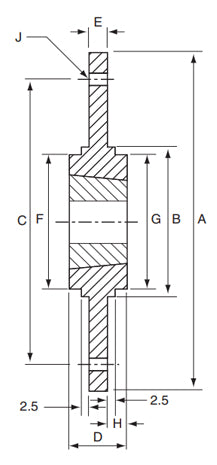

Technical
| Hub Reference | = | SM25 |
| Bush Number | = | 2517 |
| A | = | 340mm |
| B | = | 170mm |
| C | = | 240mm |
| D | = | 45mm |
| E | = | 9.5mm |
| F/G | = | 119mm |
| H | = | 17.75mm |
| J | = | 8 x 11.5mm |
