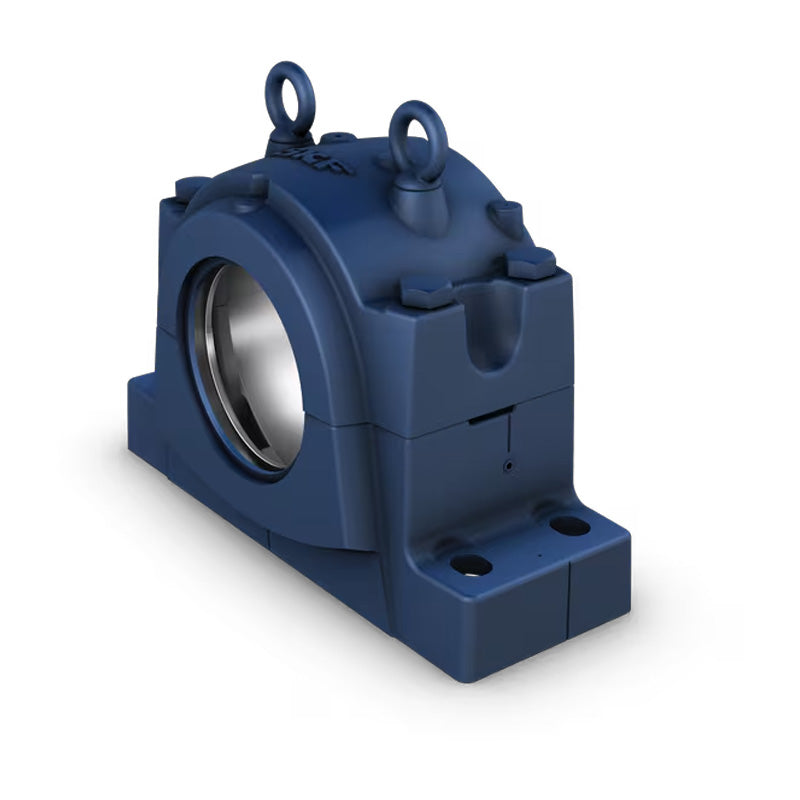

• SKF SNL3140G Cast Iron Split Pillow Block Housing for Bearings on a Cylindrical Seat and a Stepped Shaft
1 1

SKU: SNL3140G-SKF

SKF SNL3140G Cast Iron Split Pillow Block Housing for Bearings on a Cylindrical Seat and a Stepped Shaft

SKF SNL3140G Cast Iron Split Pillow Block Housing for Bearings on a Cylindrical Seat and a Stepped Shaft
$3,651.64 ex VAT
$3,651.64 ex VAT
Sale Sold out

Equivalent to: SE3140G

In stock

Price Break
4+ $2,445.98
9+ $2,308.57
19+ $2,281.08
29+ $2,253.60
39+ $2,226.12
49+ $2,198.63
59+ $2,061.22
69+ $2,033.74
79+ $2,006.25
89+ $1,978.77
99+ $1,923.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF SNL Split Plummer Block Housings: SNL plummer block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They allow maximum service life to be achieved with the incorporated bearings with less need for maintenance.
Benefits: Cost-effective bearing arrangements can be made with different housing variants and seal designs, easy installation.
Brand / Quality:
SKF - High Quality
Bolt Hole Centres:
510mm
Technical
da 180mm
A 280mm = 11 inch
A1 230mm = 9.06 inch
A2 290mm = 11.42 inch
A3 355mm = 13.98 inch
X 10mm = 0.39 inch
H 411mm = 16.18 inch
H1 210mm = 8.268 inch
H2 85mm = 3.35 inch
L 610mm = 24 inch
J 510mm = 20.08 inch
J1 130mm = 5.12 inch
S 108mm = 4.25 inch
G 30mm = 1-1/4 inch
Weight 123 kg
