SKU: SNLN3032-SKF

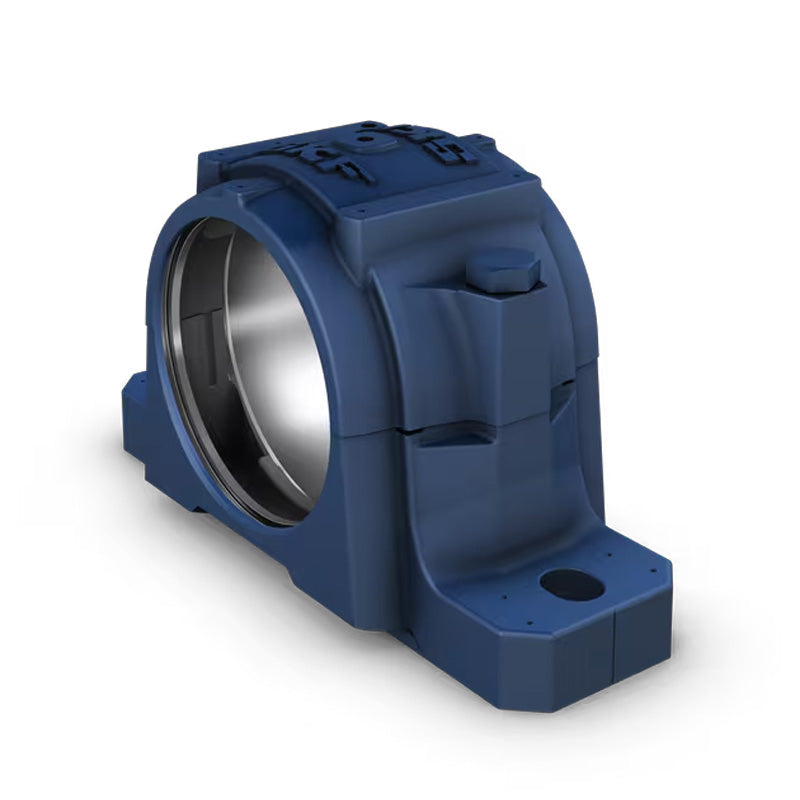

SKF SNLN3032 Cast Iron Split Pillow Block Housing
SKF SNLN3032 Cast Iron Split Pillow Block Housing
Regular price
$994.89
ex VAT
Regular price
Sale price
$994.89
ex VAT
In stock
Price Break
4+
$666.41
9+
$628.97
19+
$621.48
29+
$613.99
39+
$606.50
49+
$599.02
59+
$561.58
69+
$554.09
79+
$546.60
89+
$539.11
99+
$524.14
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 390mm
Technical
Technical
| da | 140mm |
|---|---|
| Ca | 90mm |
| Da | 240mm |
| A | 190mm |
| A1 | 130mm |
| H | 297mm |
| H1 | 150mm |
| H2 | 50mm |
| J | 390mm |
| L | 460mm |
| N | 35mm |
| N1 | 28mm |
| J6 | 424mm |
| J7 | 46mm |
| N4 max | 12mm |
| ba | 60mm |
| bc | 82mm |
