SKU: SNLN3038-SKF

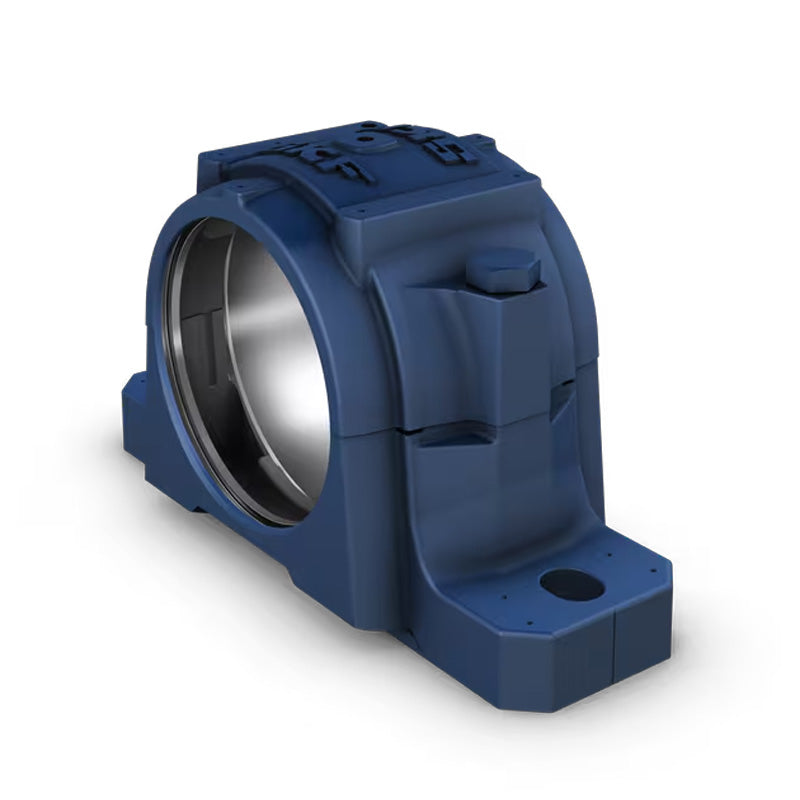

SKF SNLN3038 Cast Iron Split Pillow Block Housing
SKF SNLN3038 Cast Iron Split Pillow Block Housing
Regular price
$1,946.95
ex VAT
Regular price
Sale price
$1,946.95
ex VAT
In stock
Price Break
4+
$1,304.12
9+
$1,230.86
19+
$1,216.20
29+
$1,201.55
39+
$1,186.90
49+
$1,172.25
59+
$1,098.98
69+
$1,084.33
79+
$1,069.67
89+
$1,055.02
99+
$1,025.71
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 470mm
Technical
Technical
| da | 170mm |
|---|---|
| Ca | 95mm |
| Da | 290mm |
| A | 235mm |
| A1 | 160mm |
| H | 347mm |
| H1 | 170mm |
| H2 | 60mm |
| J | 470mm |
| L | 550mm |
| N | 42mm |
| N1 | 35mm |
| J6 | 506mm |
| J7 | 58mm |
| N4 max | 12mm |
| ba | 71mm |
| bc | 99mm |
