SKU: SNLN3044-SKF

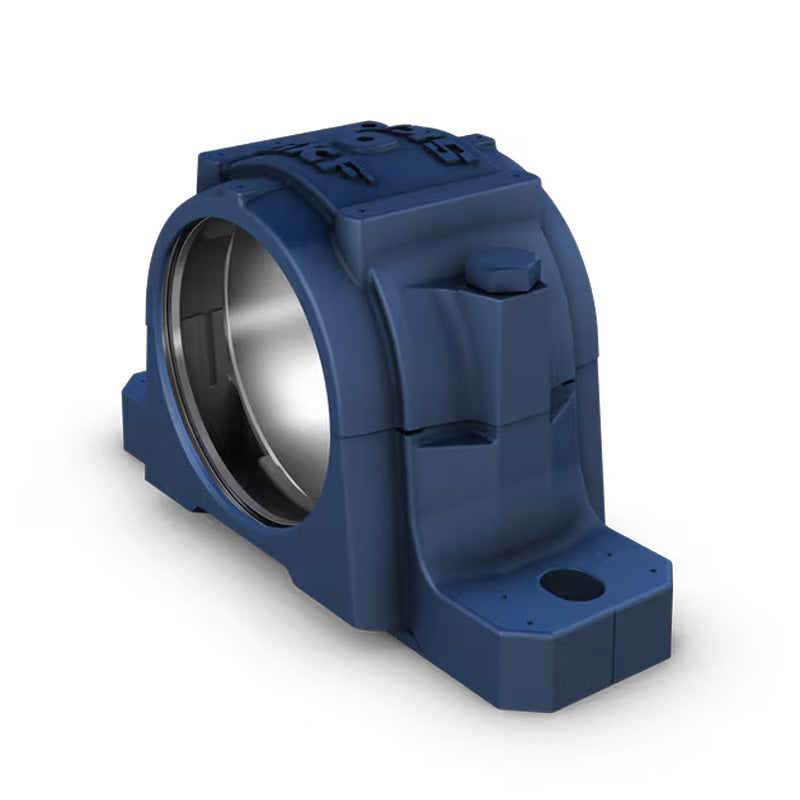

SKF SNLN3044 Cast Iron Split Pillow Block Housing
SKF SNLN3044 Cast Iron Split Pillow Block Housing
Regular price
$2,565.37
ex VAT
Regular price
Sale price
$2,565.37
ex VAT
In stock
Price Break
4+
$1,718.36
9+
$1,621.82
19+
$1,602.51
29+
$1,583.21
39+
$1,563.90
49+
$1,544.59
59+
$1,448.05
69+
$1,428.75
79+
$1,409.44
89+
$1,390.13
99+
$1,351.52
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 580mm
Technical
Technical
| da | 200mm |
|---|---|
| Ca | 110mm |
| Da | 340mm |
| A | 260mm |
| A1 | 190mm |
| H | 403mm |
| H1 | 200mm |
| H2 | 70mm |
| J | 580mm |
| L | 690mm |
| N | 50mm |
| N1 | 42mm |
| J6 | 644mm |
| J7 | 72mm |
| N4 max | 16mm |
| ba | 89mm |
| bc | 108mm |
