SKU: SNLN3048-SKF

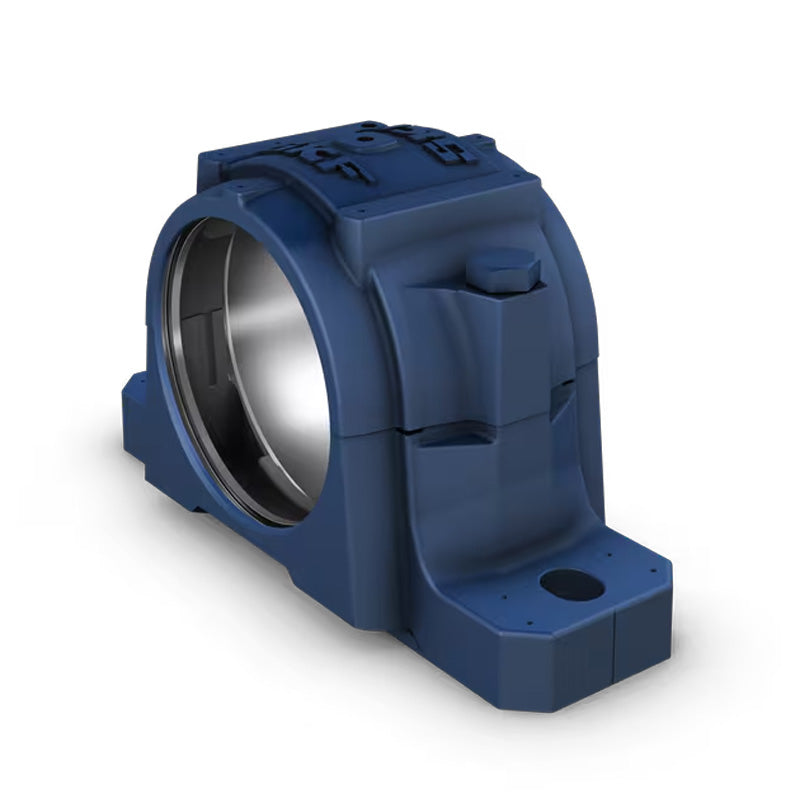

SKF SNLN3048 Cast Iron Split Pillow Block Housing
SKF SNLN3048 Cast Iron Split Pillow Block Housing
Regular price
$2,893.42
ex VAT
Regular price
Sale price
$2,893.42
ex VAT
In stock
Price Break
4+
$1,938.10
9+
$1,829.22
19+
$1,807.45
29+
$1,785.67
39+
$1,763.89
49+
$1,742.12
59+
$1,633.23
69+
$1,611.46
79+
$1,589.68
89+
$1,567.90
99+
$1,524.35
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 610mm
Technical
Technical
| da | 220mm |
|---|---|
| Ca | 112mm |
| Da | 360mm |
| A | 270mm |
| A1 | 200mm |
| H | 423mm |
| H1 | 210mm |
| H2 | 75mm |
| J | 610mm |
| L | 720mm |
| N | 50mm |
| N1 | 42mm |
| J6 | 672mm |
| J7 | 76mm |
| N4 max | 16mm |
| ba | 95mm |
| bc | 110mm |
